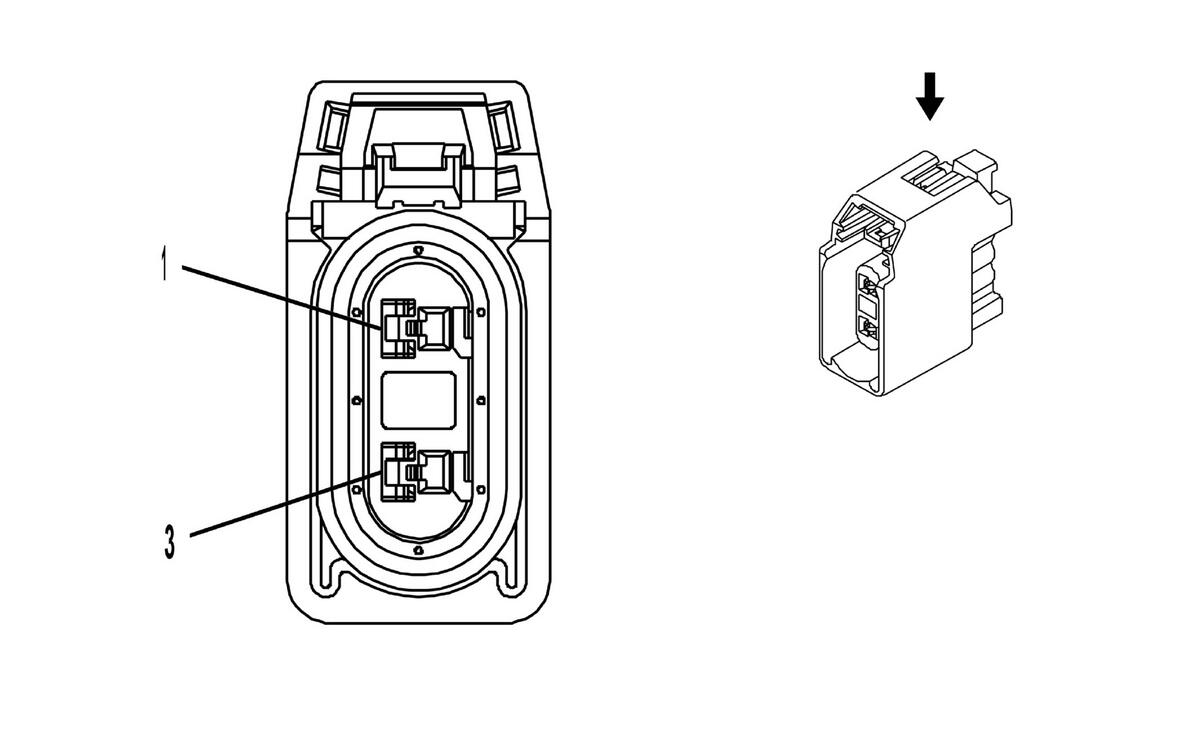

E4RF Turn Signal Lamp - Right Front (T4F)
 Courtesy of
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13590275
- Service Connector: 13583005
- Description: 3-Way F GT FBT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-29
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 15496531/8
- Core/Insulation Crimp: E/A
|
E4RF Turn Signal Lamp - Right Front (T4F)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK |
1050 |
Ground |
| 2 |
- |
- |
Not Available |
| 3 |
0.5 D-BU/WH |
1315 |
Right Front Turn Signal Lamp Supply Voltage |
