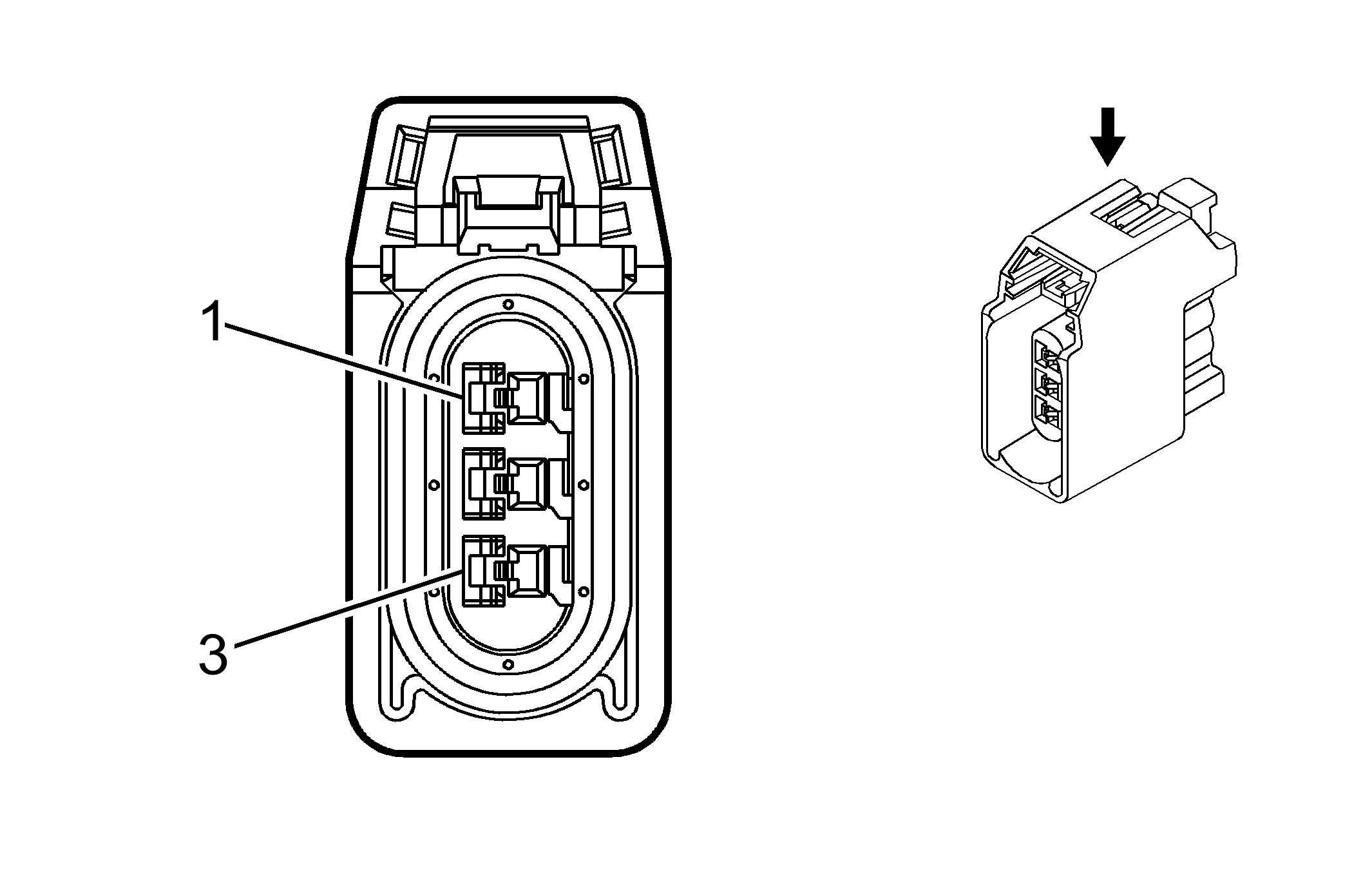

E4N Park/Turn Signal Lamp - Left (T4A)
 Courtesy of
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13590270
- Service Connector: 13583005
- Description: 3-Way F GT FBT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13587385
- Release Tool: J-38125-29
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 15496531/8
- Core/Insulation Crimp: E/A
|
E4N Park/Turn Signal Lamp - Left (T4A)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 BK |
1150 |
Ground |
| 2 |
0.5 PU |
709 |
Left Park Lamp Supply Voltage |
| 3 |
0.5 L-BU/WH |
1314 |
Left Front Turn Signal Lamp Supply Voltage |
