E42L Tail Lamp Assembly - Left (T90)

Courtesy of

Connector Part Information Harness Type: Rear Fascia OEM Connector: 12162968 Service Connector: 15305938 Description: 10-Way F 2.8 Junior Power Timer Series, Sealed (BK)

Terminal Part Information Terminated Lead: 13575362 Release Tool: J-38125-36 Diagnostic Test Probe: J-35616-35 (VT) Terminal/Tray: 4-964286-1/16 Core/Insulation Crimp: E/1

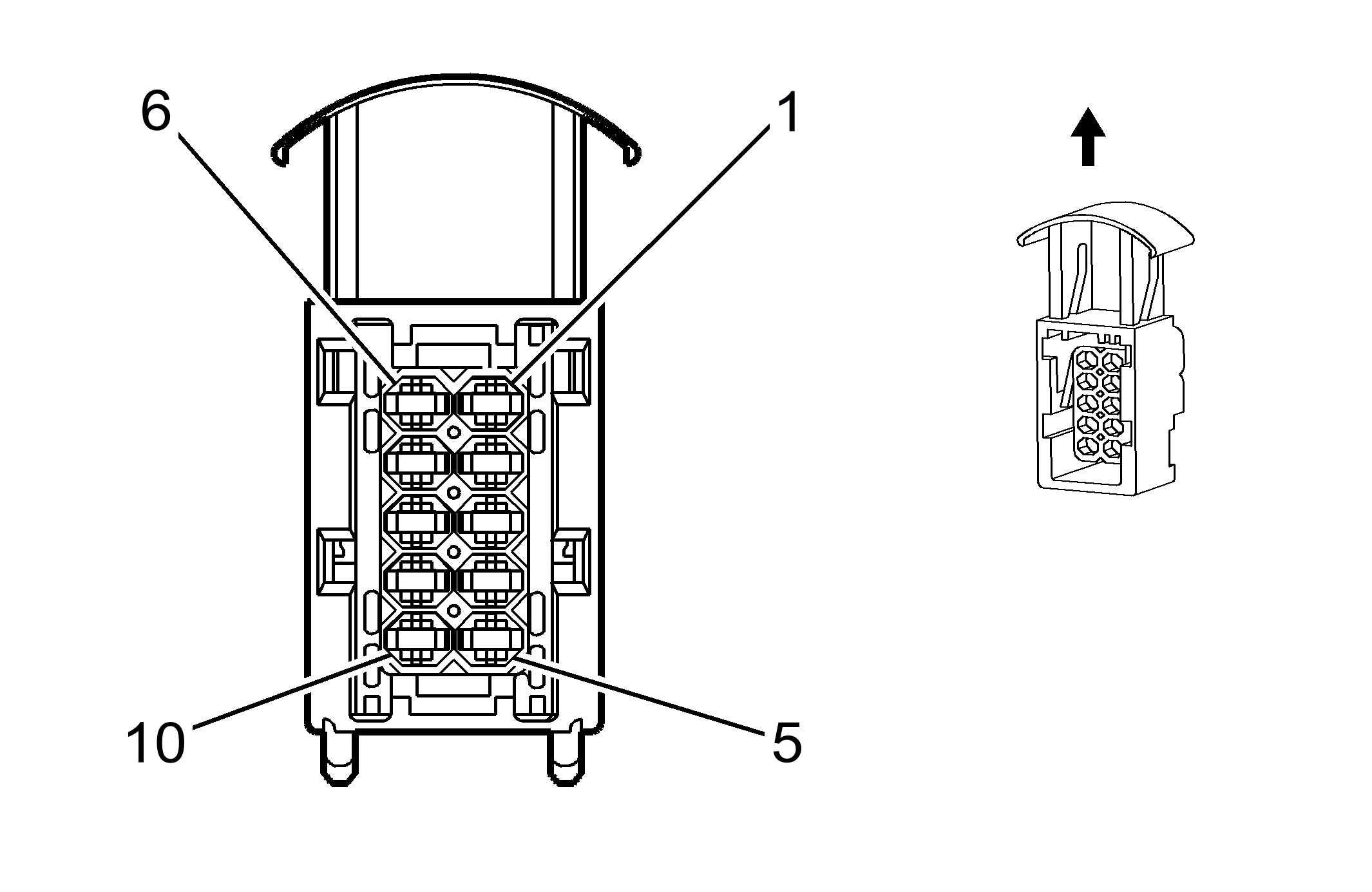

E42L Tail Lamp Assembly - Left (T90)

Pin	Wire	Circuit	Function
1	0.5 BK	2550	Ground
2	0.5 YE	7542	Left Rear Stop Lamp Supply Voltage
3	0.5 PU	709	Left Park Lamp Supply Voltage
4	0.5 YE/BK	1334	Left Rear Turn Signal Lamp Supply Voltage
5	0.5 OG	122	Rear Fog Lamp Supply Voltage( T79)
6	0.5 YE	5356	Left Tail Lamp Outage Detection Signal
7-10	-	-	Not Used
