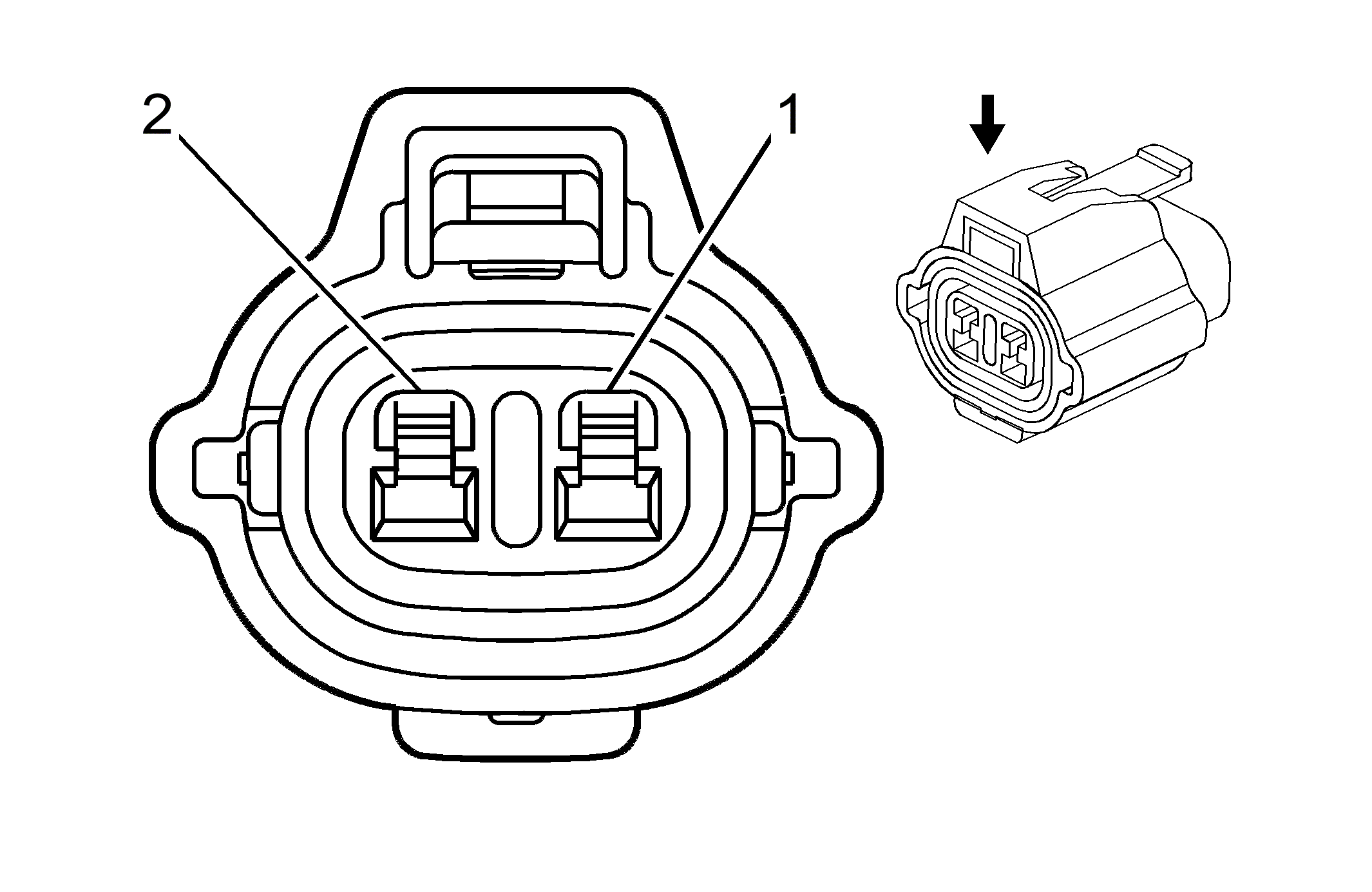

E2RF Side Marker Lamp - Right Front

GM1413080Courtesy of
Connector Part Information
  • Harness Type: Fog Lamp
  • OEM Connector: 15316847
  • Service Connector: 88988460
  • Description: 2-Way F 090 Series, Sealed (GN)
Terminal Part Information
  • Terminated Lead: 13587469
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-18 (BK)
  • Terminal/Tray: 7116-1420/11
  • Core/Insulation Crimp: E/1
E2RF Side Marker Lamp - Right Front

Pin Wire Circuit Function
1 0.5 BN/WH 309 Right Park Lamp Supply Voltage
2 0.5 BK 1050 Ground
