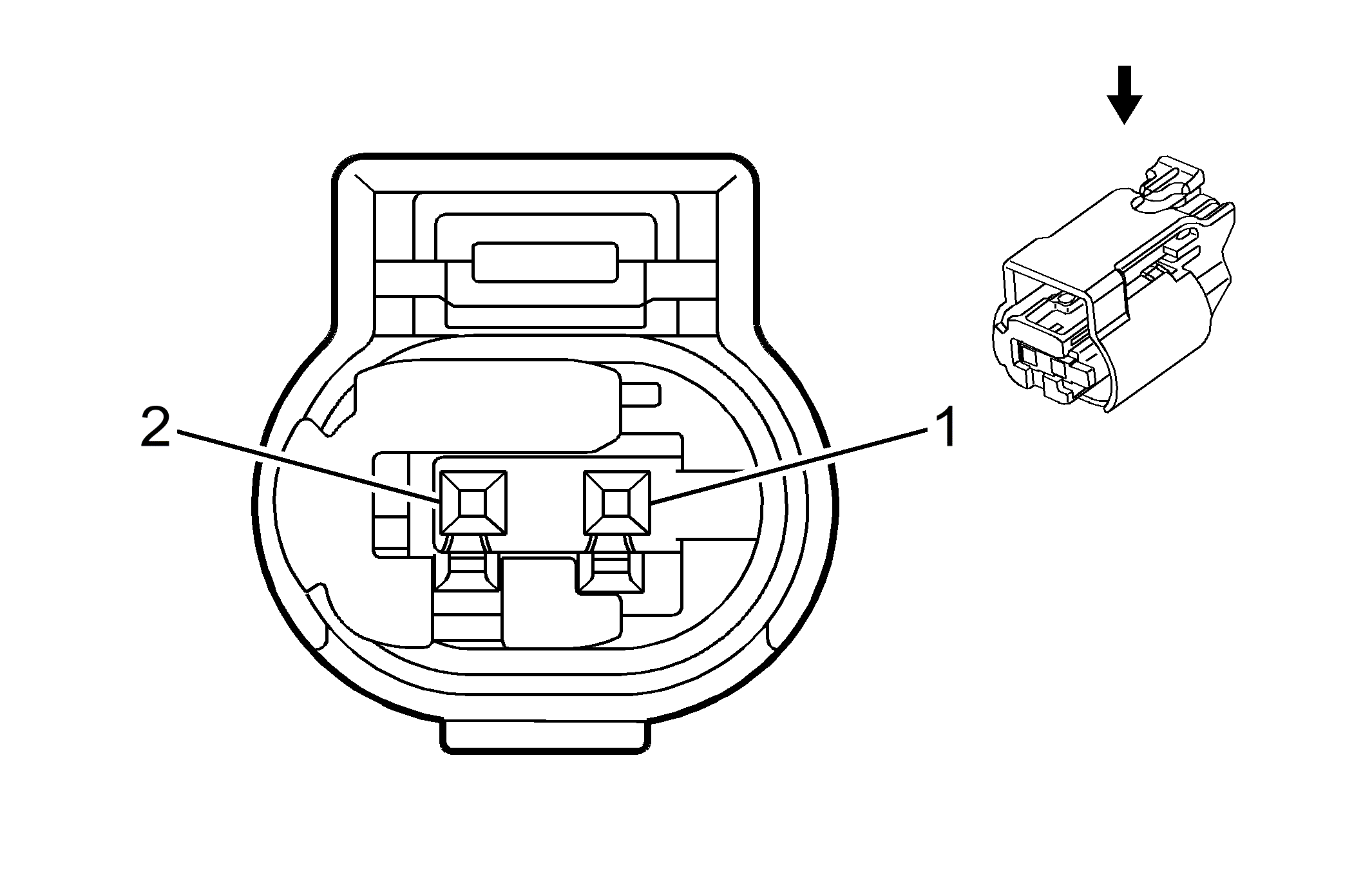

E29LR Fog Lamp - Left Rear (CZ2)

GM1710998Courtesy of
Connector Part Information
  • Harness Type: Rear Fascia
  • OEM Connector: 13531640
  • Service Connector: 19149296
  • Description: 2-Way F Clean Body Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575362
  • Release Tool: J-38125-12A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 962885-5/15
  • Core/Insulation Crimp: 6/6
E29LR Fog Lamp - Left Rear (CZ2)

Pin Wire Circuit Function
1 0.5 OG 122 Rear Fog Lamp Supply Voltage
2 0.5 BK 2550 Ground
