E18 Rear Defogger Grid X2

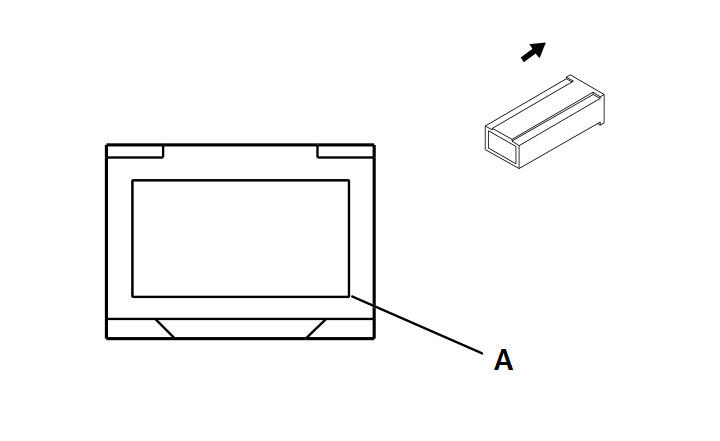

GM696936Courtesy of
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 12052018
  • Service Connector: 13580102
  • Description: 1-Way F 6.3 Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-42 (RD)
  • Terminal/Tray: 26819.213.178//A
  • Core/Insulation Crimp: Not Available
E18 Rear Defogger Grid X2

Pin Wire Circuit Function
A 5 BK 2950 Ground
