E14A Seat Heating Element - Driver Back (KA1)
 Courtesy of
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 7282-6443-40
- Service Connector: 88988503
- Description: 2-Way M 1.5 Series (L-GY)
|
Terminal Part Information
- Terminated Lead: 13575818
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 7114-4101-08/9
- Core/Insulation Crimp: E/A
|

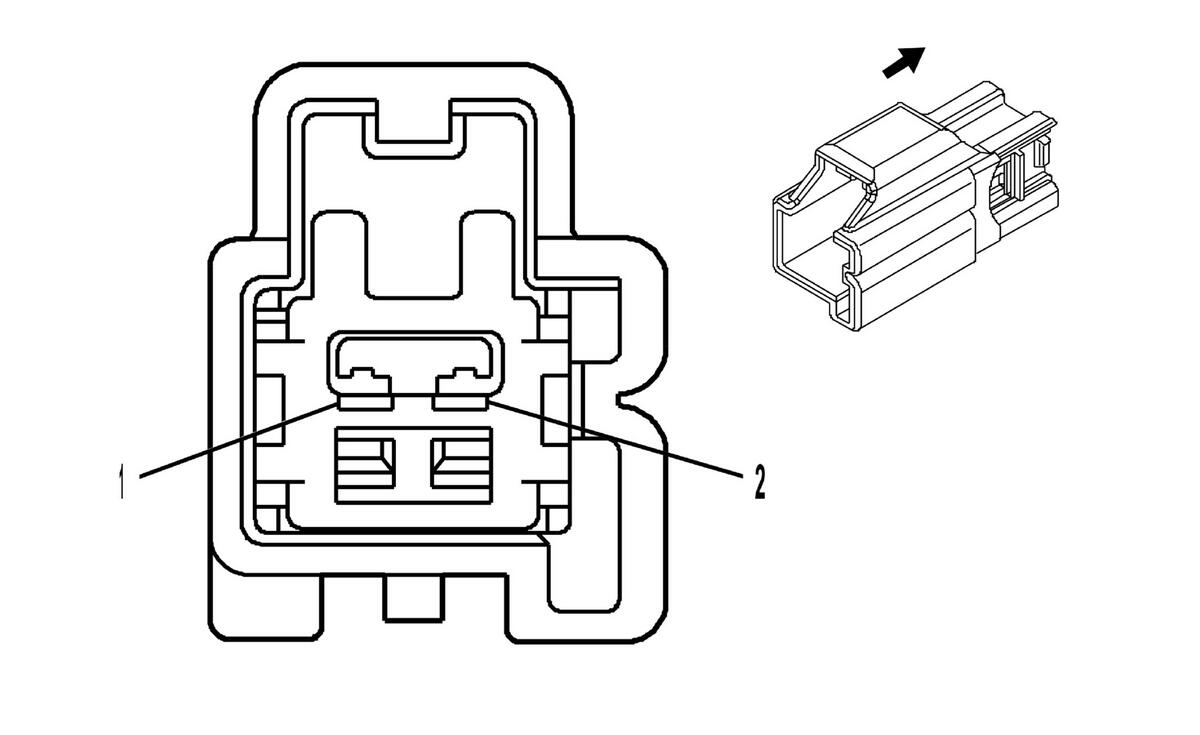

E14A Seat Heating Element - Driver Back (KA1)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 L-BU |
2424 |
Driver Heated Seat Back Element Control |
| 2 |
0.8 PK |
2078 |
Heated Seat Cushion Element Control |
