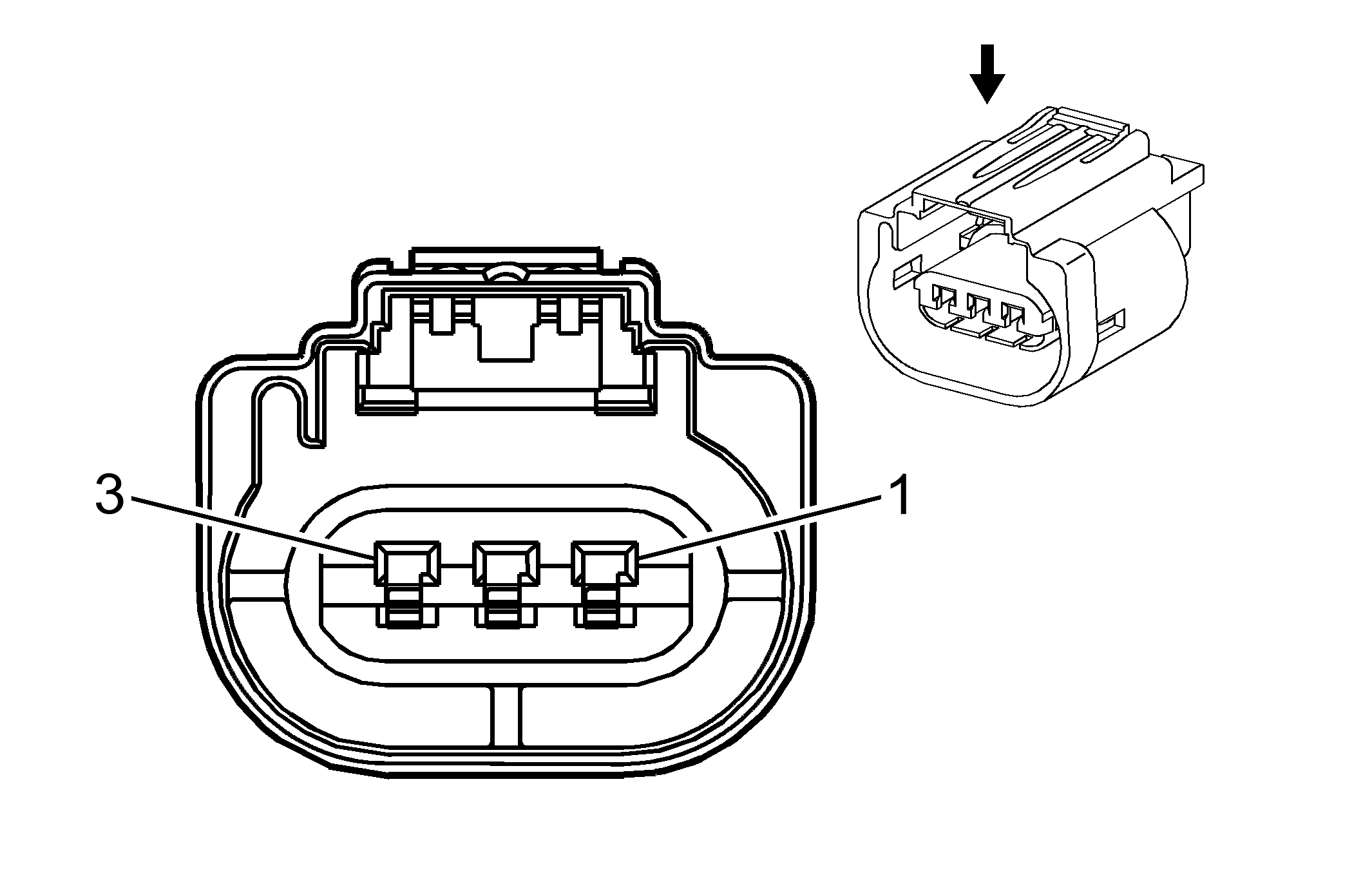

E13R Headlamp - Right (T4A)
 Courtesy of
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 10867142
- Service Connector: 88988364
- Description: 3-Way F Lamp Socket, Sealed (D-GN)
|
Terminal Part Information
- Terminated Lead: 13575424
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4103-08/9
- Core/Insulation Crimp: E/1
|
E13R Headlamp - Right (T4A)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 TN/WH |
312 |
Right Headlamp Low Beam Supply Voltage |
| 2 |
0.8 BK |
1050 |
Ground |
| 3 |
0.8 L-GN/BK |
311 |
Right Headlamp High Beam Supply Voltage |
