B87 Rearview Camera (UVC)

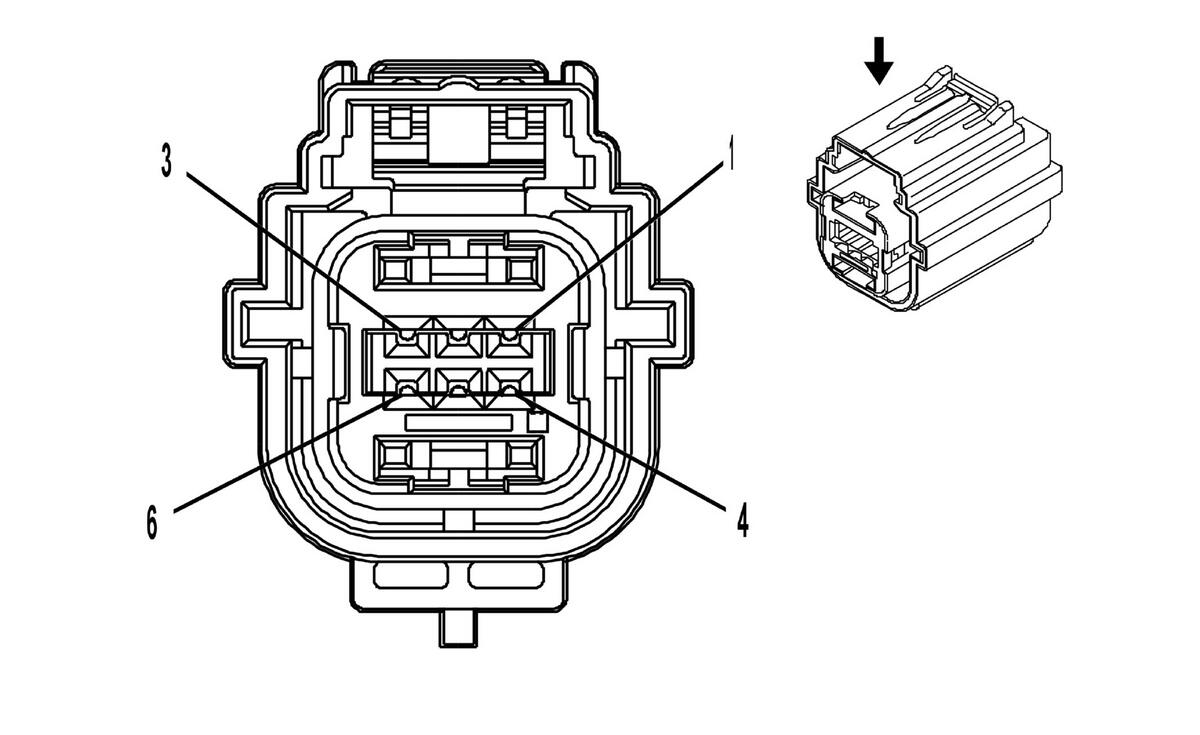

GM2133378Courtesy of
Connector Part Information
  • Harness: License Lamp
  • OEM: 19169088
  • Service: Service by Harness - See Part Catalog
  • Description: 6-Way F 0.64 Series, Sealed (GY)
Terminal Part Information
  • Terminated Lead: 13575867
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray:SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
Rearview Camera (UVC)

Pin Wire Circuit Function
1 0.35 PK 6972 Camera Signal +
2 0.35 BARE 6974 Camera Drain Wire
3 0.35 L-GN 24 Backup Lamps Supply Voltage
4 0.35 L-BU 6973 Camera Signal -
5 0.35 BK 850 Signal Ground
6 0.35 PK 339 Run/Crank Ignition 1 Voltage (Coupe or Sedan)
