B74 Manifold Absolute Pressure Sensor (L99, LS3 or LSA)
 Courtesy of
|

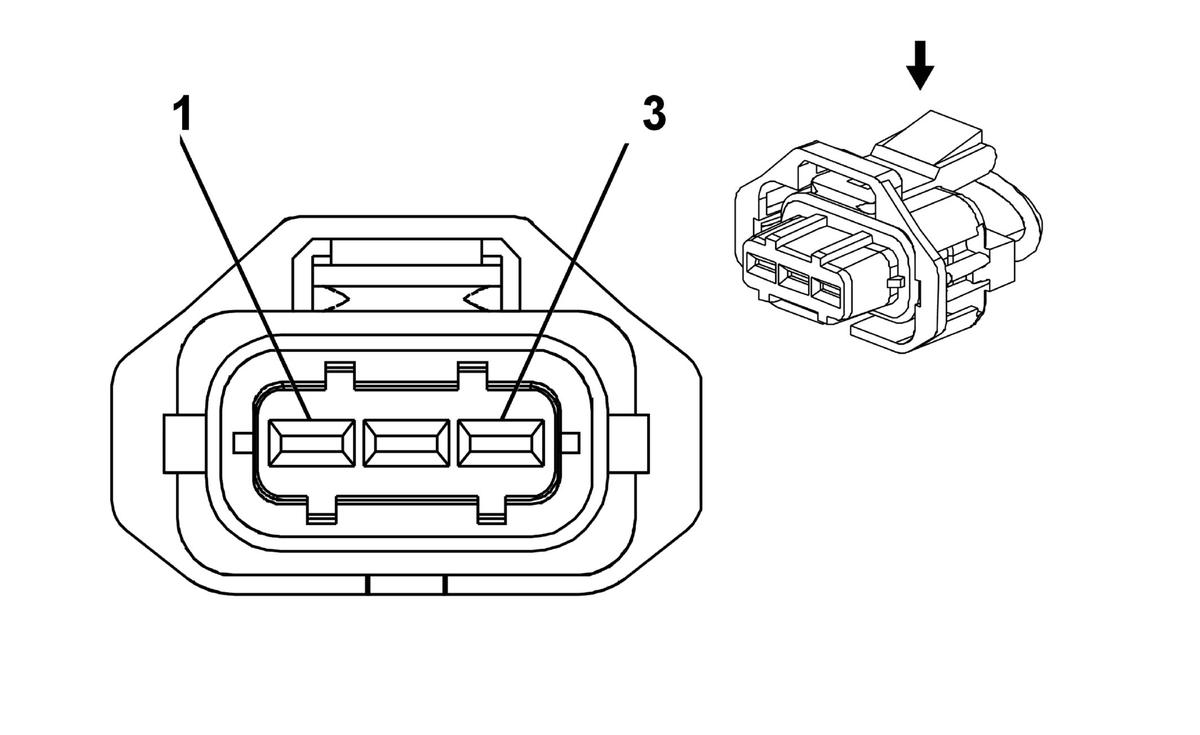

Connector Part Information
- Harness Type: Engine
- OEM Connector: 15365614
- Service Connector: 13585850
- Description: 3-Way F Kompakt 2.8 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13576381
- Release Tool: J-38125-561
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 1928498056/8
- Core/Insulation Crimp: E/1
|
B74 Manifold Absolute Pressure Sensor (L99, LS3 or LSA)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 GY |
2704 |
5-Volt Reference 1 |
| 2 |
0.5 OG/BK |
469 |
Low Reference |
| 3 |
0.5 L-GN |
432 |
MAP Sensor Signal |
