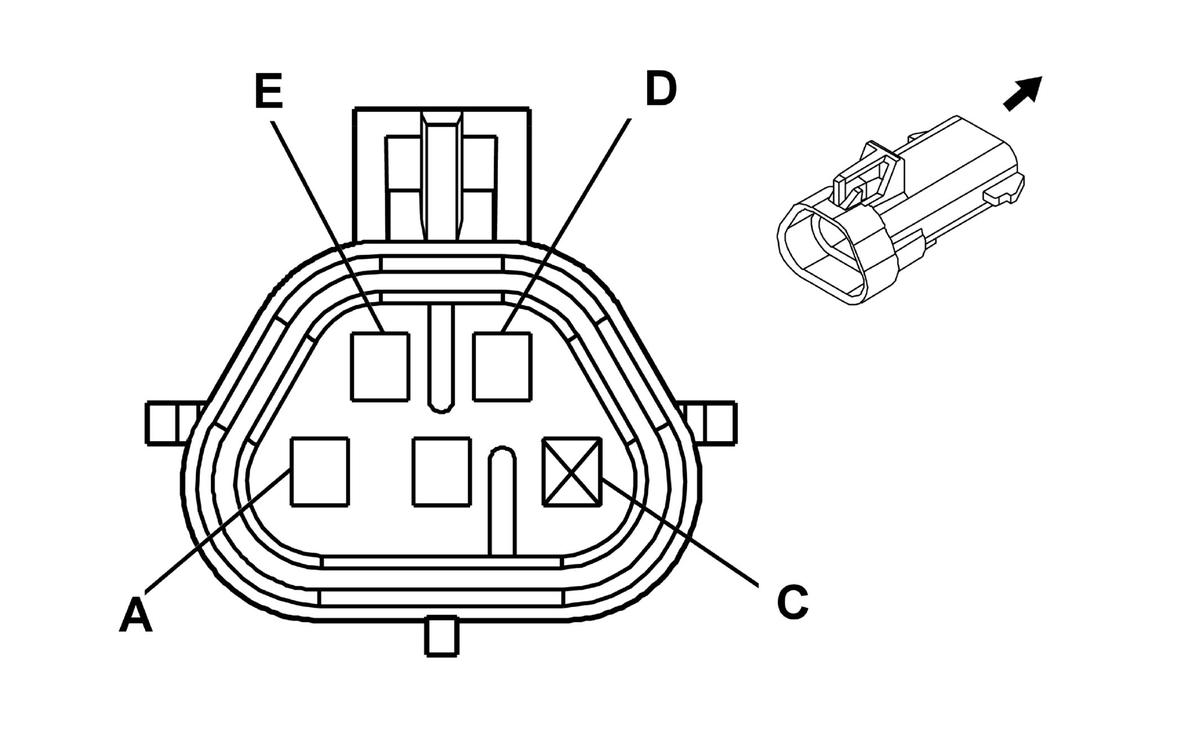

B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12092840
- Service Connector: 15306311
- Description: 5-Way M Metri-Pack 150 Series, Sealed (GY)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 12177150/4
- Core/Insulation Crimp: E/1
|
B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFX)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 TN/WH |
3111 |
HO2S Low Signal Bank 1 Sensor 1 |
| B |
0.5 PU/WH |
3110 |
HO2S High Signal Bank 1 Sensor 1 |
| C |
- |
- |
Not Used |
| D |
0.8 PK/BK |
5293 |
Ignition Voltage |
| E |
0.8 GY/WH |
3113 |
HO2S Heater Low Control Bank 1 Sensor 1 |
