B47B Fuel Rail Pressure Sensor (LFX)
 Courtesy of
|

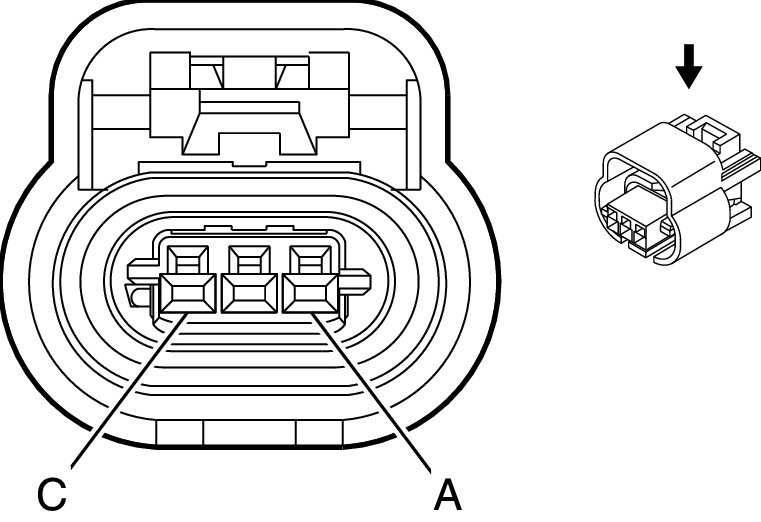

Connector Part Information
- Harness Type: Injectors (Odd)
- OEM Connector: 15326556
- Service Connector: 88953359
- Description: 3-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminal/Tray:13575412
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/1
|
B47B Fuel Rail Pressure Sensor (LFX)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 GY |
2917 |
5-Volt Reference 1 |
| B |
0.5 YE |
2918 |
FRP Sensor Signal |
| C |
0.5 OG/BK |
2919 |
Low Reference |
