B37B Engine Oil Pressure Sensor (L99, LS3 or LSA)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13589761
- Service Connector: 13501882
- Description: 3-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13575412
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191819/8
- Core/Insulation Crimp: E/1
|

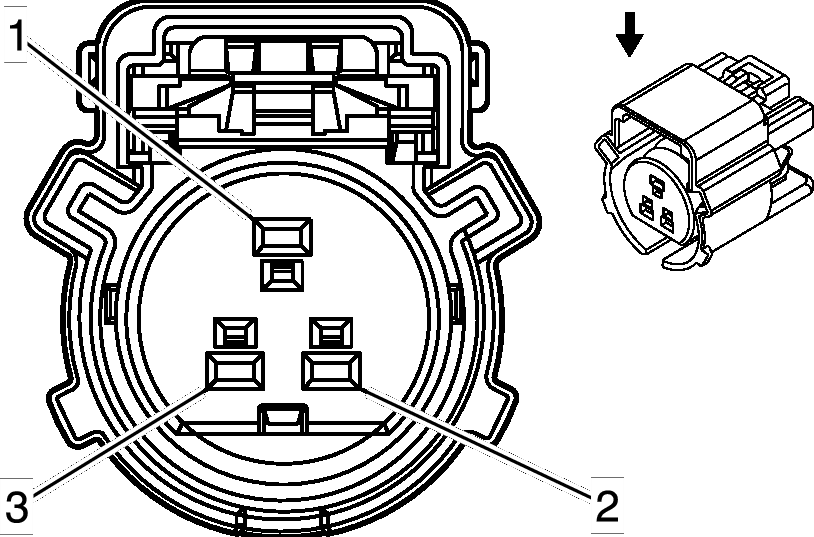

B37B Engine Oil Pressure Sensor (L99, LS3 or LSA)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 TN/WH |
331 |
Oil Pressure Sensor Signal |
| 2 |
0.5 GY |
2705 |
5-Volt Reference 1 |
| 3 |
0.5 BK |
2755 |
Low Reference |
