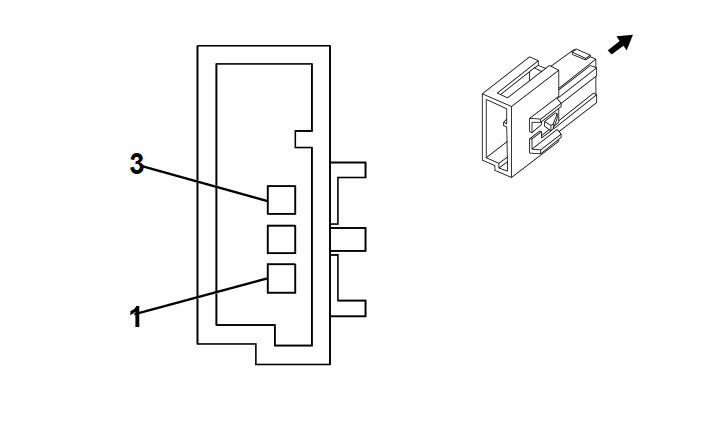

B24 Cellular Phone Microphone (UPH)
 Courtesy of
|
Connector Part Information
- Harness Type: Roof
- OEM Connector: 13646861
- Service Connector: 13579450
- Description: 3-Way M 0.64 Series (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-215A
- Diagnostic Test Probe: J-35616-65B (L-BU)
- Terminal/Tray: SAITW-A03T-064/20
- Core/Insulation Crimp: J/J
|
B24 Cellular Phone Microphone (UPH)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.35 D-GN |
654 |
Low Reference |
| 3 |
0.35 GY |
655 |
Cellular Telephone Microphone Signal |
