B20 Brake Fluid Level Switch

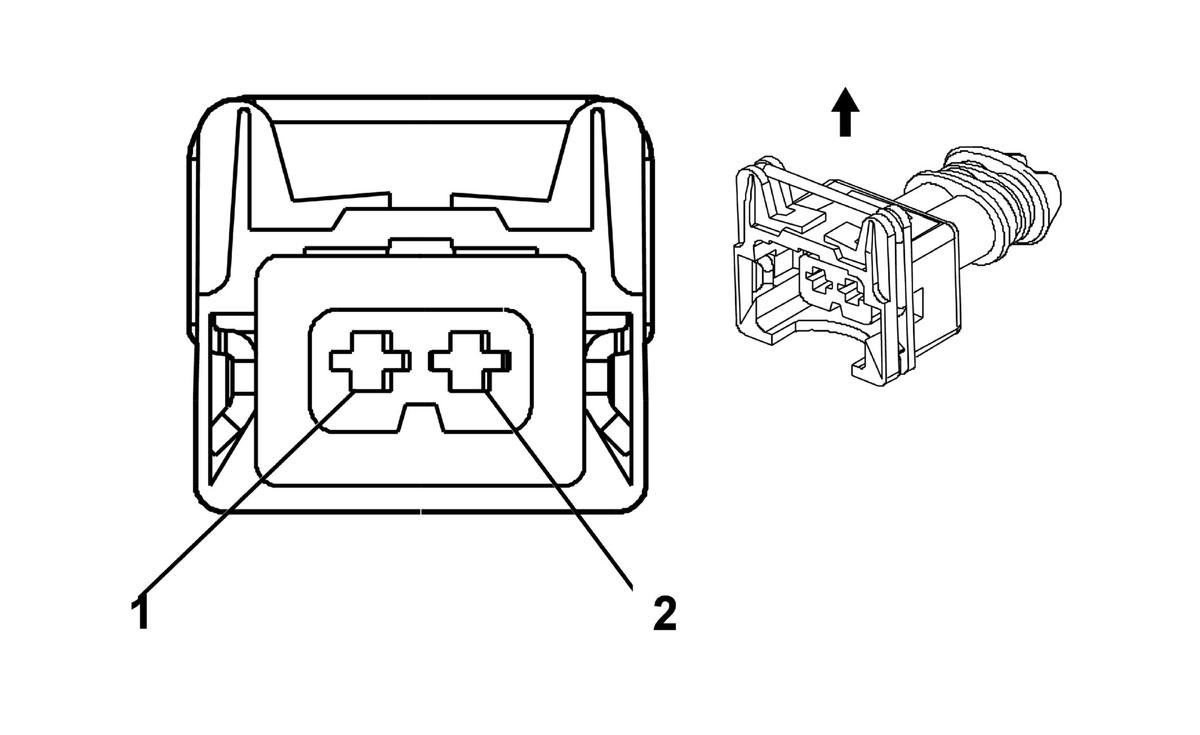

GM1363810Courtesy of
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 12196895
  • Service Connector: 13505904
  • Description: 2-Way F 2.8 Timer Series, Sealed (BK)
Terminal Part Information
  • Terminated Lead: 13575377
  • Release Tool: J-38125-557
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 60012941/21
  • Core/Insulation Crimp: C/1
B20 Brake Fluid Level Switch

Pin Wire Circuit Function
1 0.5 PU 333 Brake Fluid Level Sensor Signal
2 0.5 BK 1050 Ground
