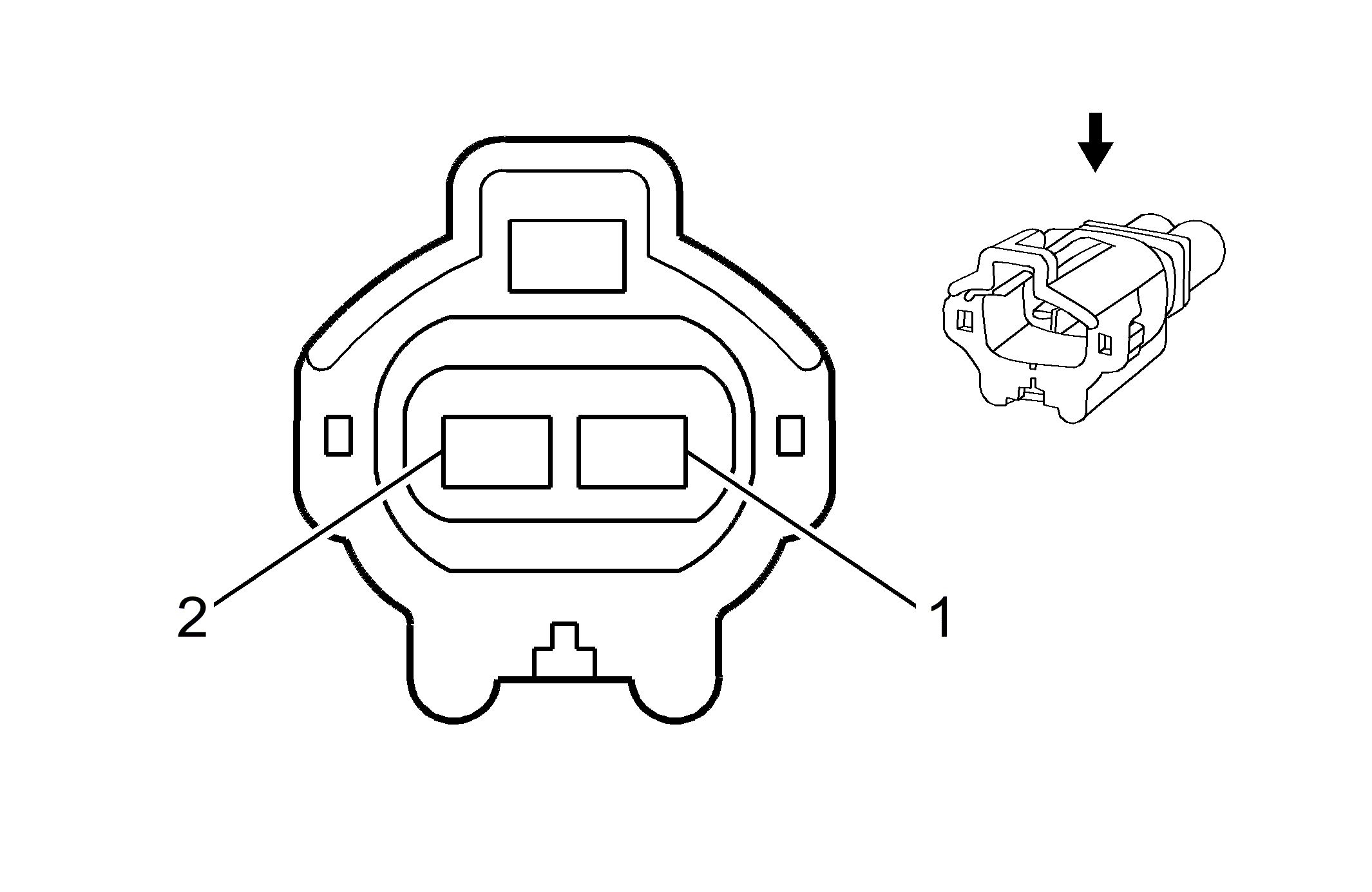

B16 Backup Lamp Switch (MV5)

GM2282904Courtesy of
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13655976
  • Service Connector: 13505906
  • Description: 2-Way M 090 II Series, Sealed (L-GY)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-19 (BK)
  • Terminal/Tray: 7114-4025/11
  • Core/Insulation Crimp: E/1
B16 Backup Lamp Switch (MV5)

Pin Wire Circuit Function
1 0.35 L-GN 5007 Backup Lamp Switch Signal
2 0.35 BK/WH 451 Ground
