B16 Backup Lamp Switch (M10)
 Courtesy of
|

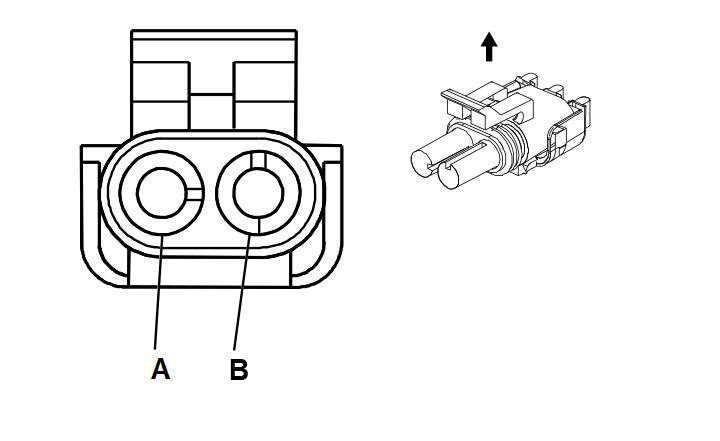

Connector Part Information
- Harness Type: Engine
- OEM Connector: 12015792
- Service Connector: 12126452
- Description: 2-Way F Weather Pack Series (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-10A
- Diagnostic Test Probe: J-35616-8 (OG)
- Terminal/Tray: 12089188/3
- Core/Insulation Crimp: Pin: A- E/5
- Core/Insulation Crimp: Pin: B- E/5
|
B16 Backup Lamp Switch (M10)
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 L-GN |
5007 |
Backup Lamp Switch Signal |
| B |
0.5 BK/WH |
451 |
Ground |
