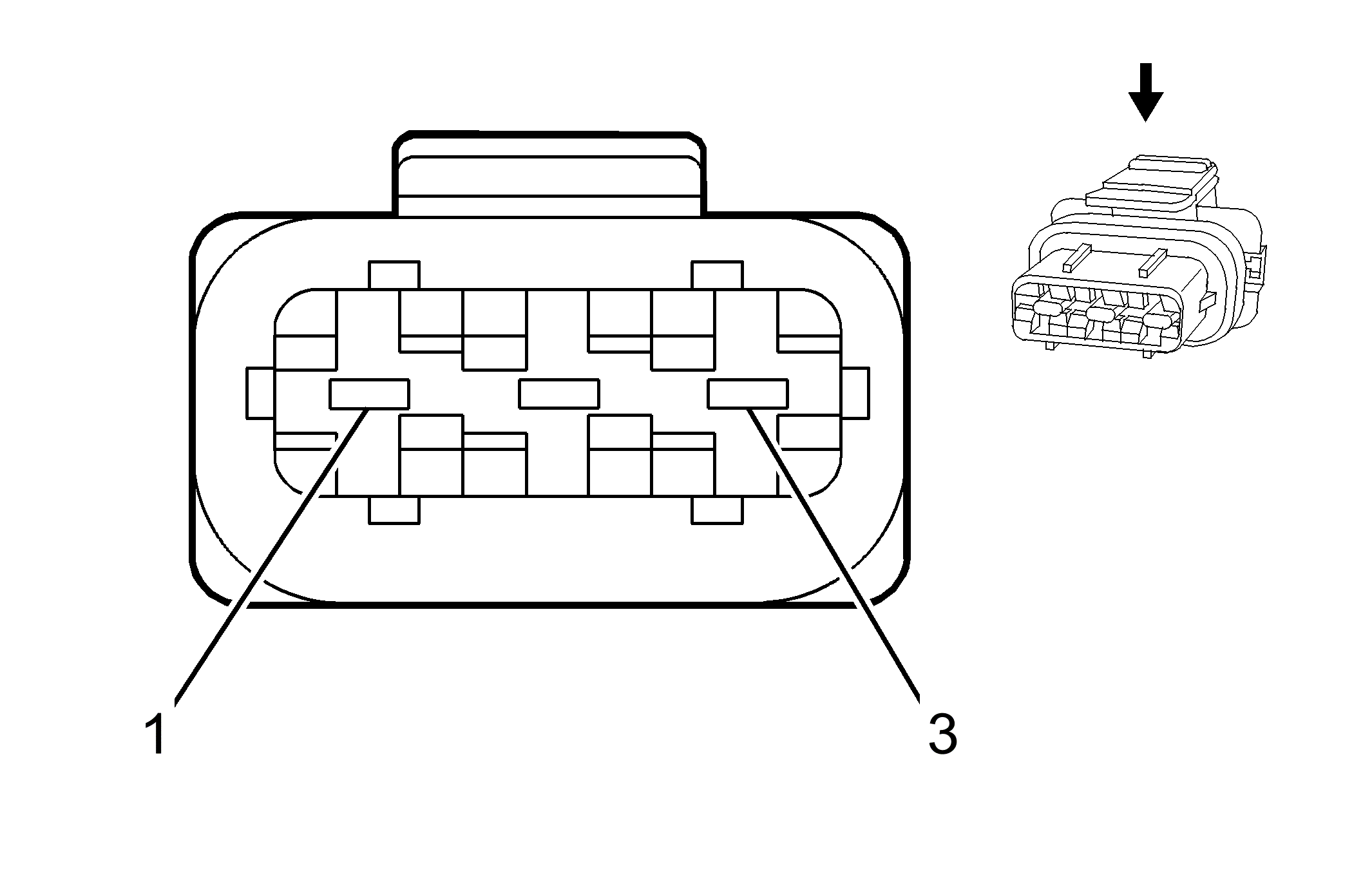

B115 Vehicle Speed Sensor (MV5)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12185331
- Service Connector: 15306391
- Description: 3-Way F 2.8 Junior Power Timer Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13581346
- Release Tool: J-38125-36
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 4-964286-1/16
- Core/Insulation Crimp: E/1
|
B115 Vehicle Speed Sensor (MV5)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 GY/BK |
6355 |
VSS Signal High |
| 2 |
0.5 BK/WH |
451 |
Ground |
| 3 |
0.5 PK |
239 |
Ignition Voltage |
