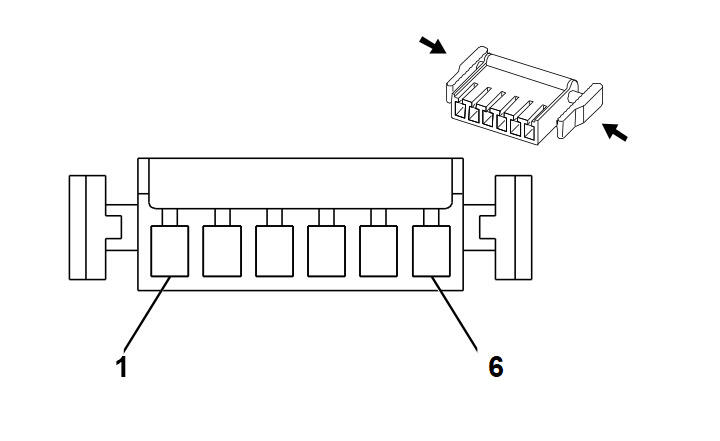

B10 Ambient Light Sensor

GM2173602

Courtesy of

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 13726957
Service Connector: 13576539
Description: 6-Way F 0.64 Micro Quadlok Series (BK)

Terminal Part Information

Terminated Lead: 13575782
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: 928999-5/15
Core/Insulation Crimp: Pins: 1, 5 - H/H
Core/Insulation Crimp: Pin: 6 - J/J

B10 Ambient Light Sensor

Pin	Wire	Circuit	Function
1	0.35 GY	728	Security Indicator Control
2-4	-	-	Not Used
5	0.35 WH	278	Ambient Light Sensor Signal
6	0.5 BK	1650	Ground
