B1 A/C Refrigerant Pressure Sensor
 Courtesy of
|

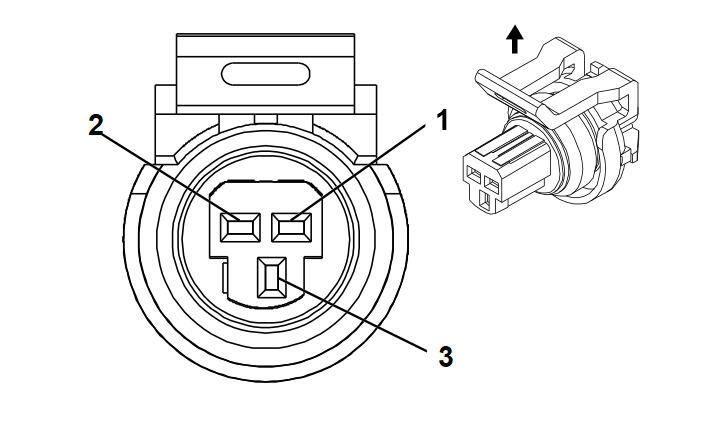

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13602480
- Service Connector: 88988301
- Description: 3-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: 13575400
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 15326267/19
- Core/Insulation Crimp: E/4
|
B1 A/C Refrigerant Pressure Sensor
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 TN |
5514 |
Low Reference |
| 2 |
0.5 GY |
2700 |
5-Volt Reference 1 |
| 3 |
0.5 OG/BK |
380 |
A/C Refrigerant Pressure Sensor Signal |
