A20 Radio/HVAC Controls

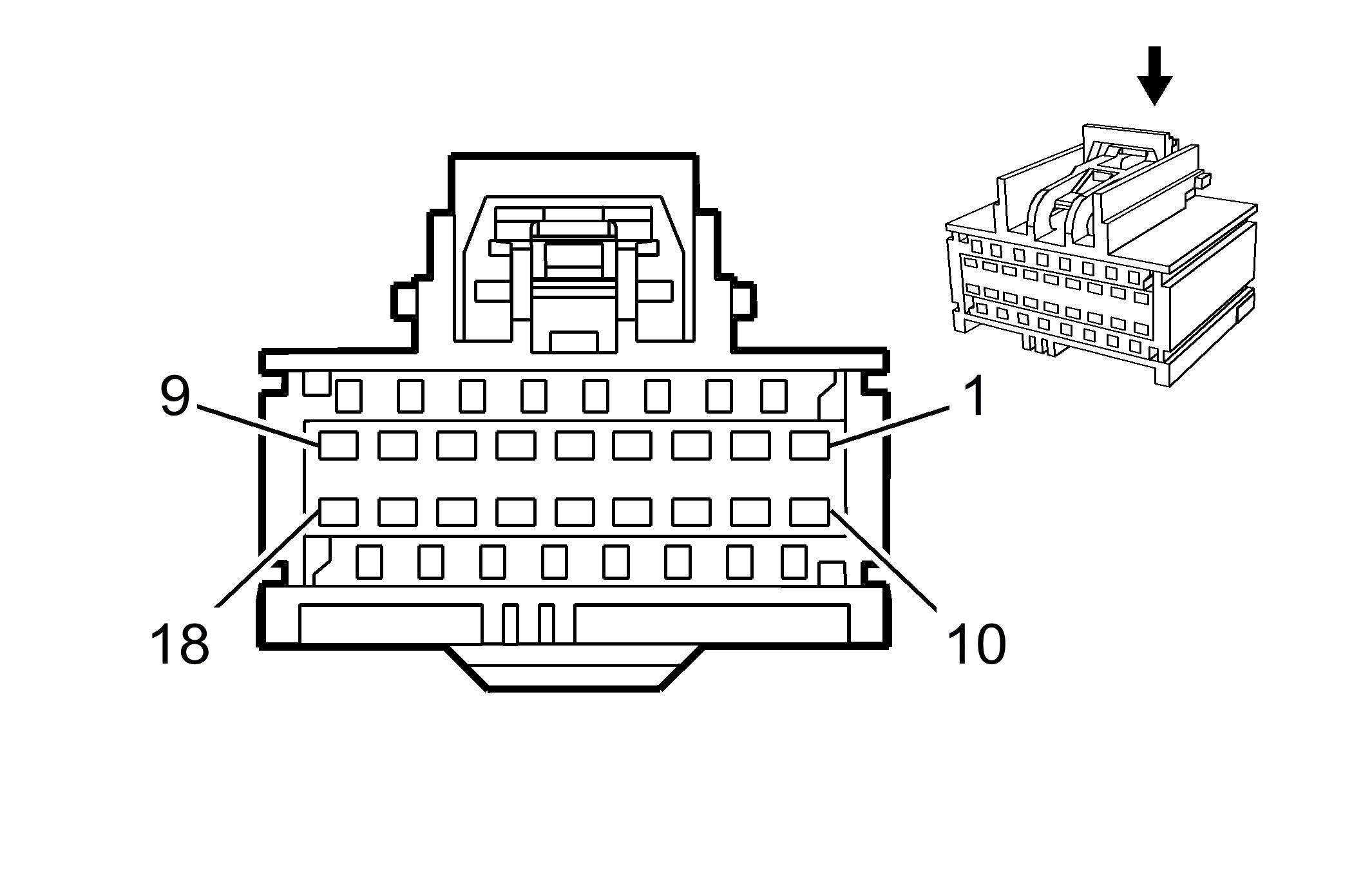

GM2282930Courtesy of
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13607274
  • Service Connector: 13576645
  • Description: 18-Way F Kaizen 64 Series (WH)
Terminal Part Information
  • Terminated Lead: 13575867
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
A20 Radio/HVAC Controls

Pin Wire Circuit Function
1 0.35 TN 7458 Serial Data
2 0.35 YE 7459 Serial Data
3 0.35 BARE 7460 Drain Wire
4 0.35 L-GN 3291 Center Stack Wake - Up Signal
5-7 - - Not Used
8 0.35 YE 7531 Linear Interconnect Network 9
9 - - Not Used
10 0.5 RD/WH 3240 Battery Positive Voltage
11 - - Not Used
12 0.35 PK/BK 780 Driver Door Lock Switch Lock Signal
13 0.35 OG/BK 781 Driver Door Lock Switch Unlock Signal
14 - - Not Used
15 0.35 PK 3290 Center Stack Reset Signal
16 0.35 WH 111 Hazard Switch Signal
17 0.5 BK 1650 Ground
18 - - Not Used
