Accessory Wiring Junction Block Replacement
Accessory Wiring Junction Block Replacement

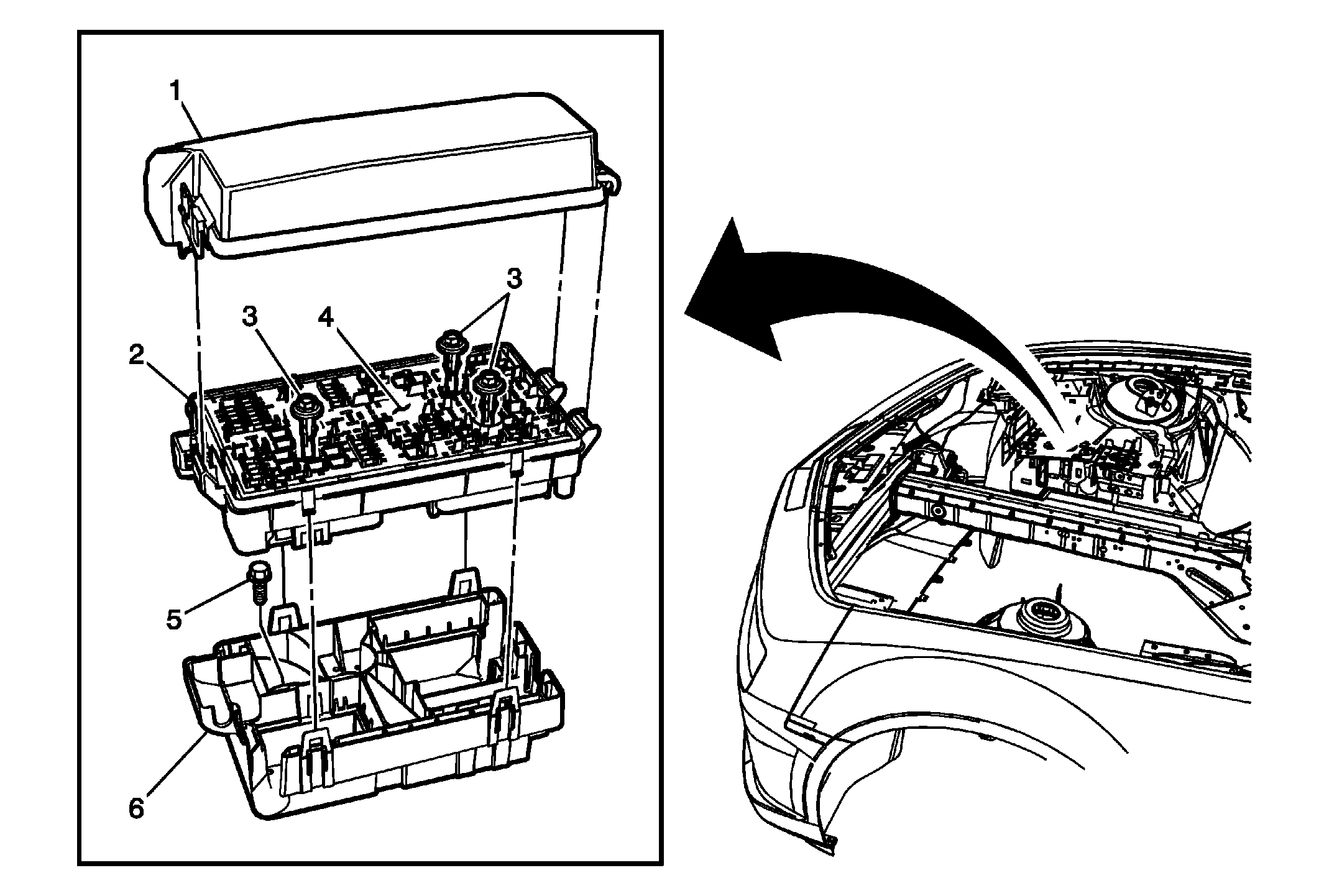

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection . |
|
| 1 | Accessory Wiring Junction Block Cover Procedure Remove the accessory wiring junction block cover by pushing in on the 3 retainer tabs located on the ends of the cover and lift. To reinstall, fit together the retainer tabs located on the ends of the cover and push down on the cover until the tabs on the ends of the cover lock into place. |
| 2 | Battery Cable Nut
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the battery positive cable from the junction block by removing the nut. Tighten 7 N.m (62 lb in) |
| 3 | Accessory Wiring Junction Block Harness Connector Bolt (Qty: 3) Procedure Remove the accessory wiring harness from the accessory wiring junction block retainer. Tighten 10 N.m (89 lb in) |
| 4 | Accessory Wiring Junction Block Retainer Procedure Remove the accessory wiring junction block retainer by pushing in on the 4 retainer tabs located on the sides of the retainer and lift. To reinstall, fit together the retainer tabs located on the sides of the retainer and push down on the retainer until the tabs on the sides of the cover lock into place. |
| 5 | Accessory Wiring Junction Block Retainer Base Bolt Tighten 20 N.m (15 lb ft) |
| 6 | Accessory Wiring Junction Block Retainer Base Procedure Position the junction block retainer base alignment tab to the bracket first, then install the bolt. |
