Driver or Passenger Seat Inner Recliner Finish Cover Replacement

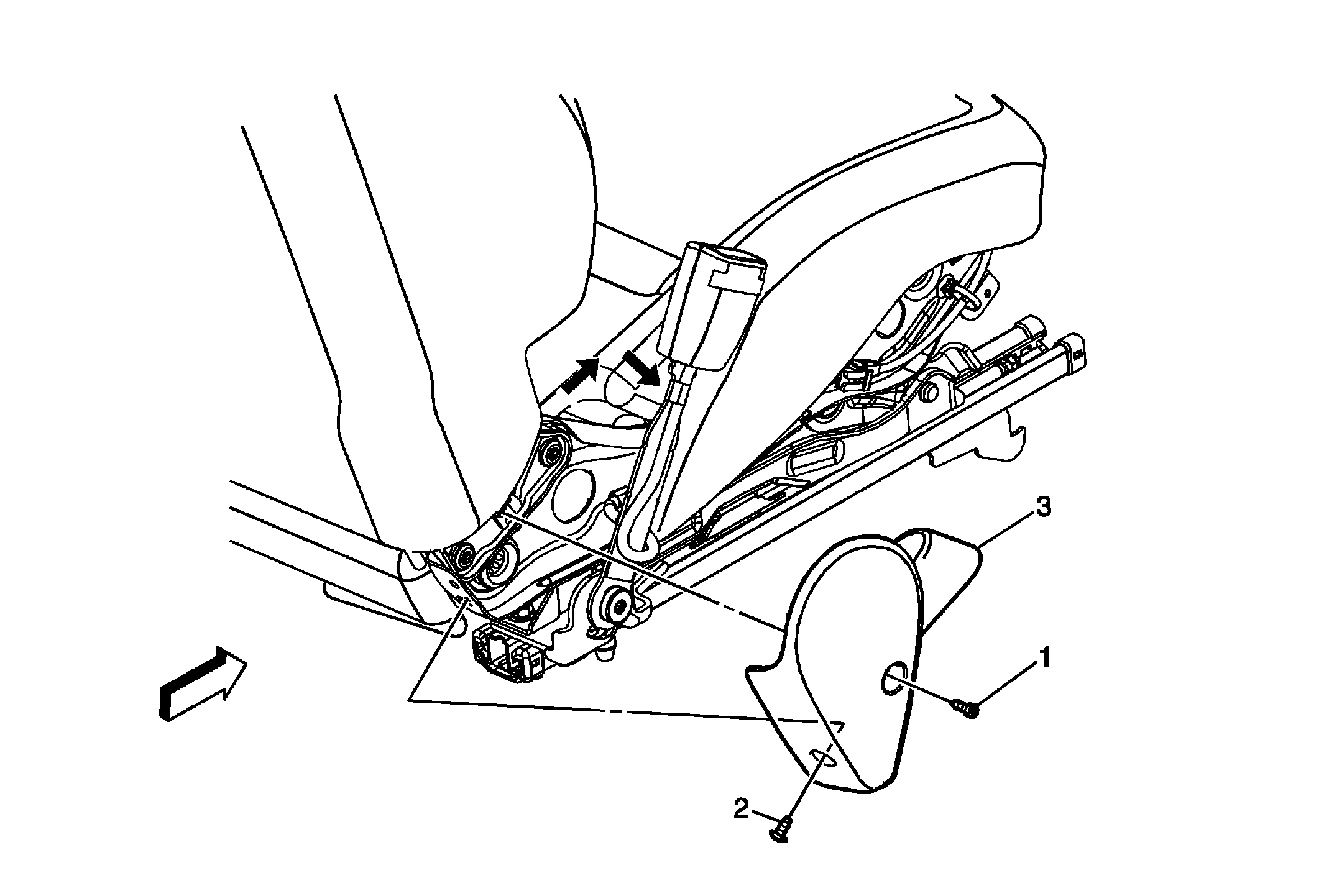

Fig 1: Front Seat Inner Recliner Finish Cover And Screws

Courtesy of GENERAL MOTORS COMPANY

Driver or Passenger Seat Inner Recliner Finish Cover Replacement

Callout	Component Name
1	Driver or Passenger Seat Inner Recliner Finish Cover Side Screw
2	Driver or Passenger Seat Inner Recliner Finish Cover Rear Screw
3	Driver or Passenger Seat Inner Recliner Finish Cover Procedure  Firmly grasp the top of the finish cover, pull upward and then outboard to disengage the finish cover from the seat cushion frame.
