Quarter Window Reveal Molding Replacement
Quarter Window Reveal Molding Replacement

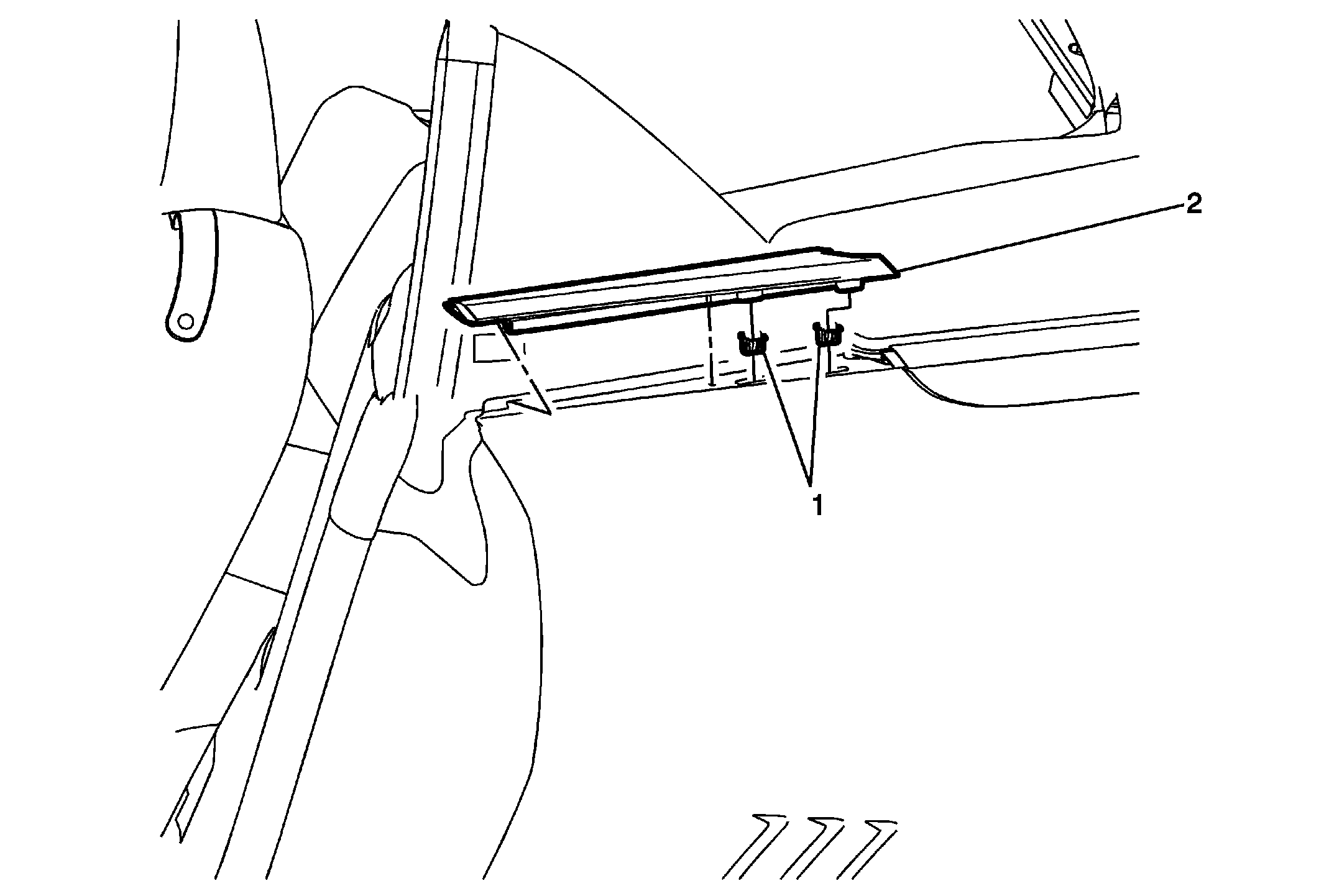

| Callout | Component Name |
|---|---|
| 1 | Quarter Window Reveal Molding Clips (Qty: 2) Procedure Start in the rear of the quarter window reveal molding, using a suitable plastic tool lift the molding releasing the clips TIP: No trim needs to be removed, the quarter window reveal molding hooks on the front edge of the quarter panel flange while the rear is retained by two clips. |
| 2 | Quarter Window Reveal Molding |
