Windshield Side Garnish Molding Replacement (Convertible)

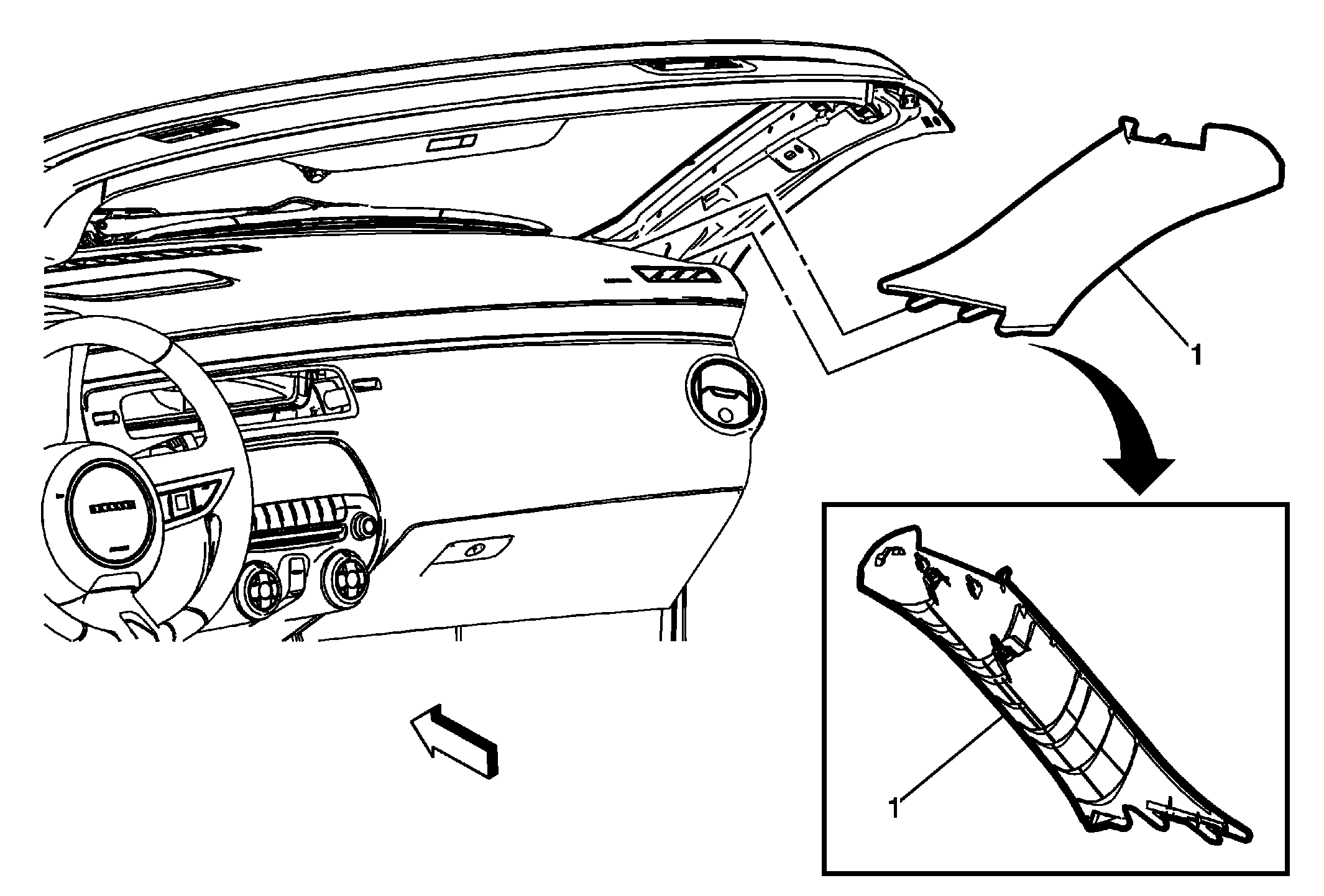

Fig 1: Windshield Side Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Place the folding top assembly in a full down position to allow access to the windshield side garnish molding.
1	Windshield Side Garnish Molding Assembly Procedure Starting at the top, gently pull on the garnish molding to disengage the clips. Disconnect electrical connector. Garnish clips must be seated in roof front header garnish molding lower prior to installing sealing clips. Tabs to be fully seated in instrument panel trim pad.

Callout

Component Name

Preliminary Procedure
Place the folding top assembly in a full down position to allow access to the windshield side garnish molding.

Windshield Side Garnish Molding Assembly

Procedure

Starting at the top, gently pull on the garnish molding to disengage the clips.
Disconnect electrical connector.
Garnish clips must be seated in roof front header garnish molding lower prior to installing sealing clips.
Tabs to be fully seated in instrument panel trim pad.
