Sunshade Replacement (Coupe)
Sunshade Replacement (Coupe)

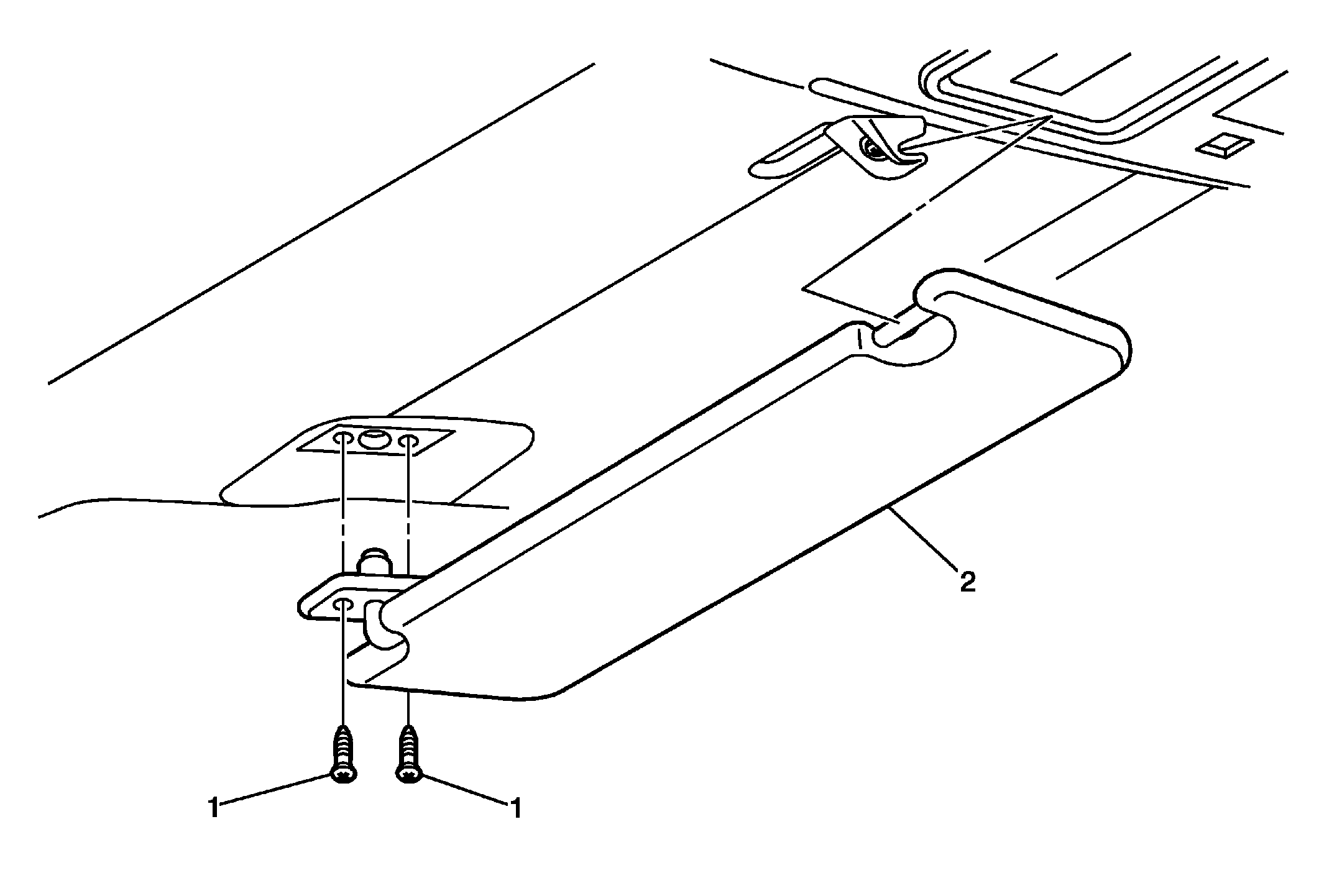

| Callout | Component Name |
|---|---|
| 1 | Sunshade Support Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Procedure Tilt the sunshade down toward the windshield to access fasteners. Tighten 3 N.m (25 lb in) |
| 2 | Sunshade Assembly |
