Roof Front Header Garnish Molding Replacement - Upper (Convertible)

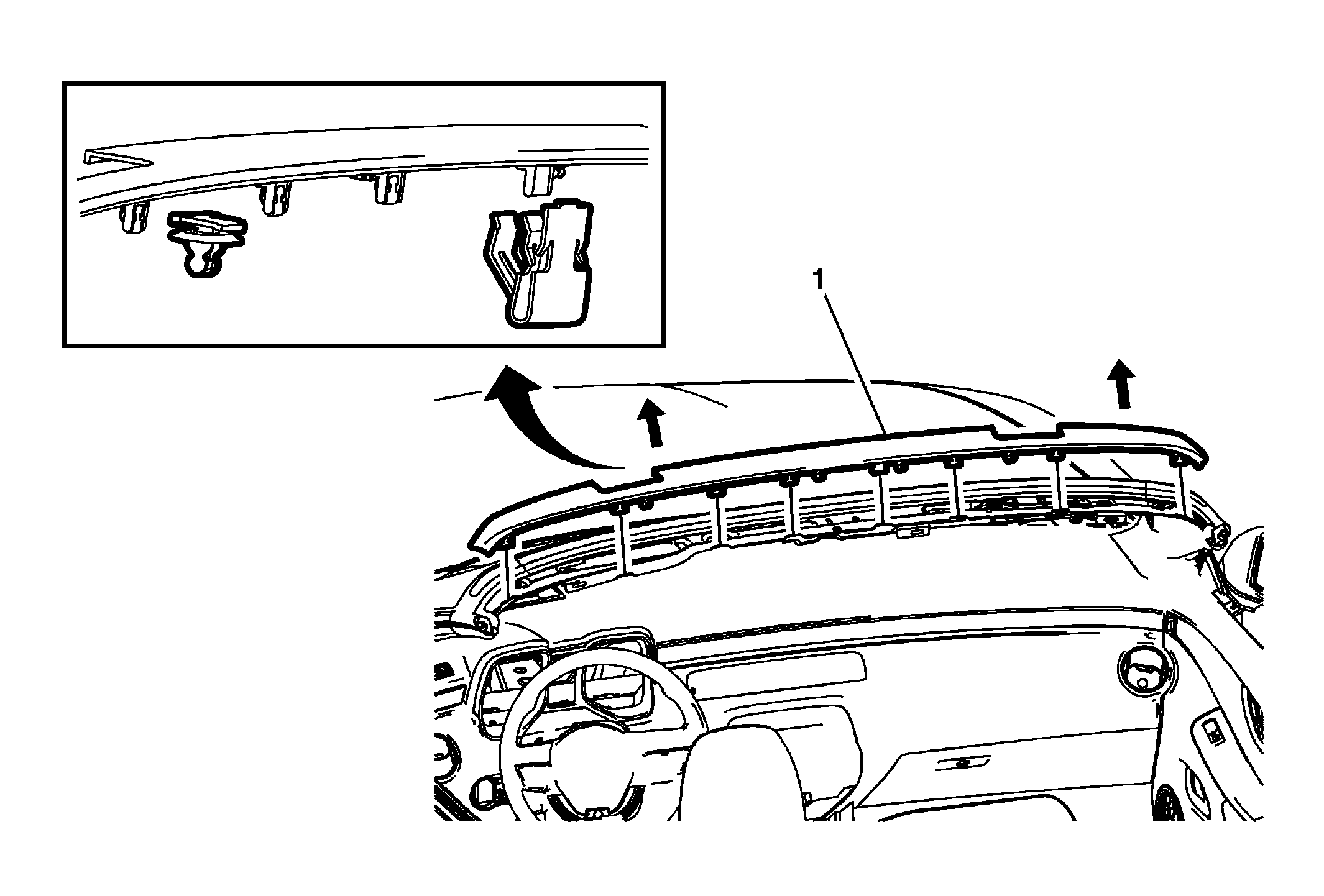

Fig 1: Roof Front Header Garnish Molding - Upper

Courtesy of GENERAL MOTORS COMPANY

Roof Front Header Garnish Molding Replacement - Upper (Convertible)

Callout	Component Name
Preliminary Procedure  Place the folding top assembly in a service position to allow access to the roof front header garnish molding upper.
1	Roof Front Header Garnish Molding Assembly TIP:  Ensure that weather-strip does not get trapped under roof front header garnish molding upper.
