Quarter Trim Panel Insert Replacement (Convertible)

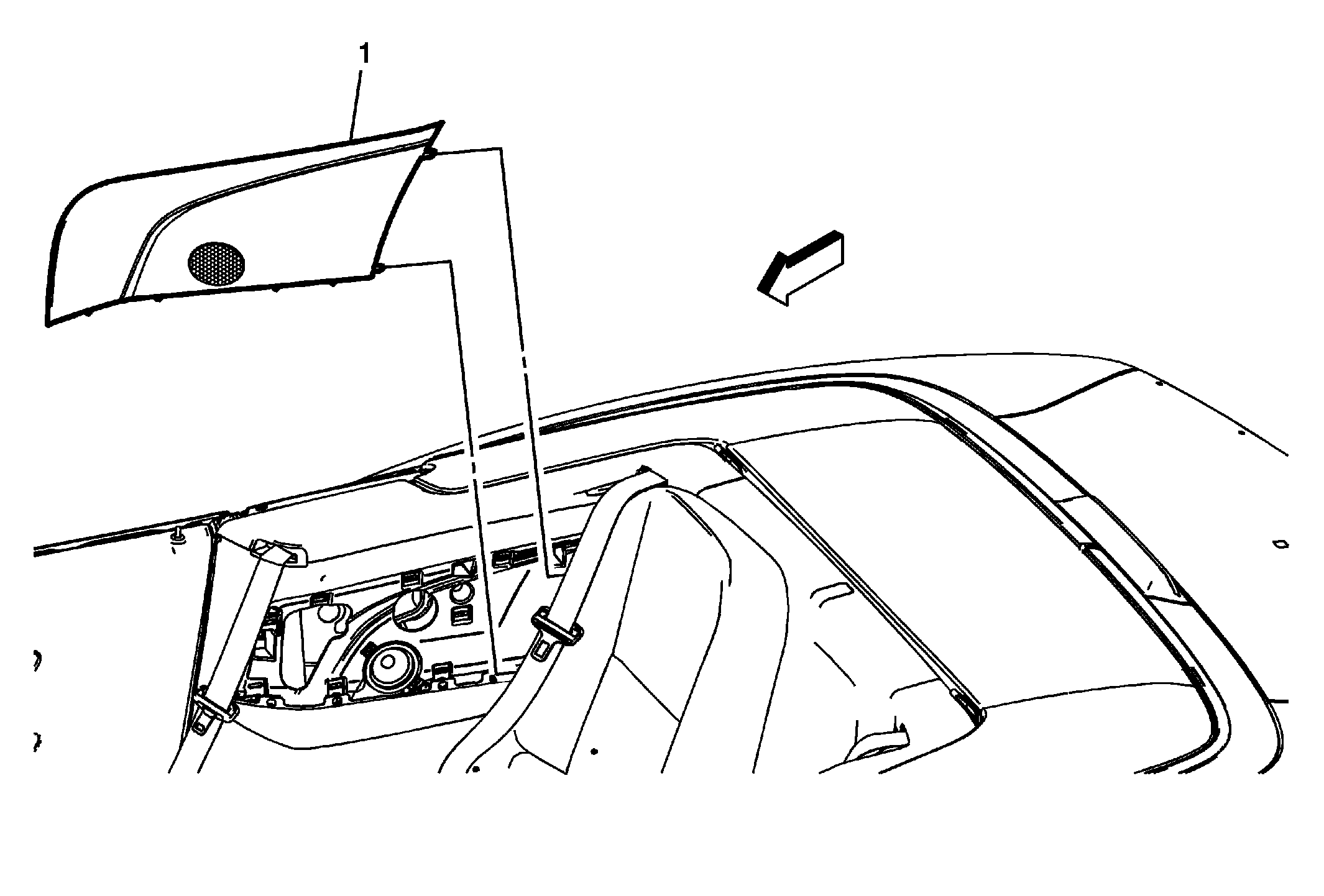

Fig 1: Quarter Trim Panel Insert
GM2535265Courtesy of GENERAL MOTORS COMPANY
Quarter Trim Panel Insert Replacement (Convertible)

Callout Component Name
1 Quarter Trim Panel Insert Assembly

Procedure

  1. Use a trim tool or equivalent to aid in removal.
  2. Start at forward edge and pull outward to disengage the clips that secure the quarter trim panel insert to the quarter trim panel.
