Body Hinge Pillar Trim Panel Replacement

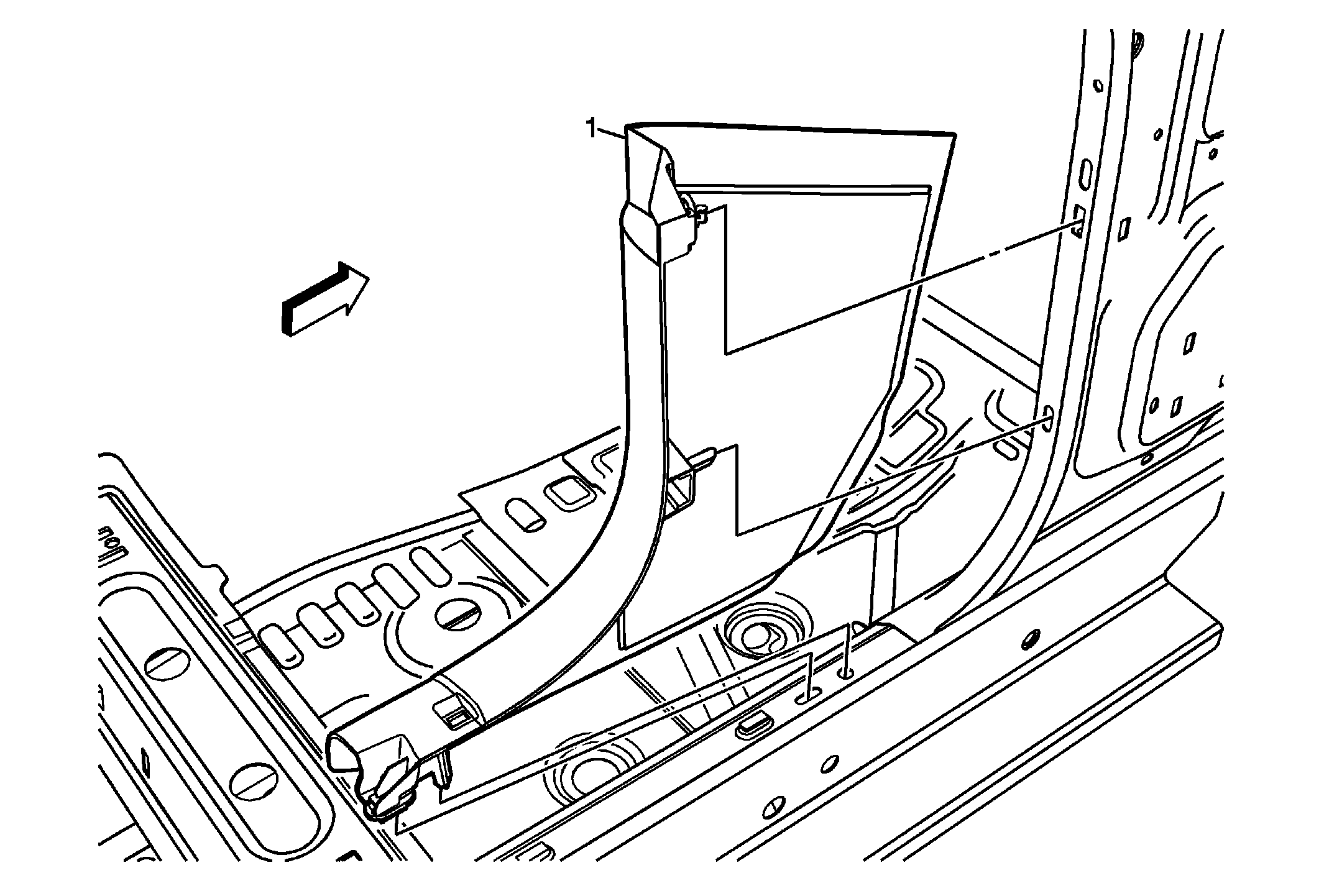

Fig 1: Body Hinge Pillar Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door opening floor carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement . Remove instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
1	Body Hinge Pillar Trim Panel Assembly

Callout

Component Name

Preliminary Procedure

Remove the front side door opening floor carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
Remove instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .

Body Hinge Pillar Trim Panel Assembly
