Instrument Panel Upper Trim Pad Bezel Replacement
Courtesy of GENERAL MOTORS COMPANY Instrument Panel Upper Trim Pad Bezel Replacement

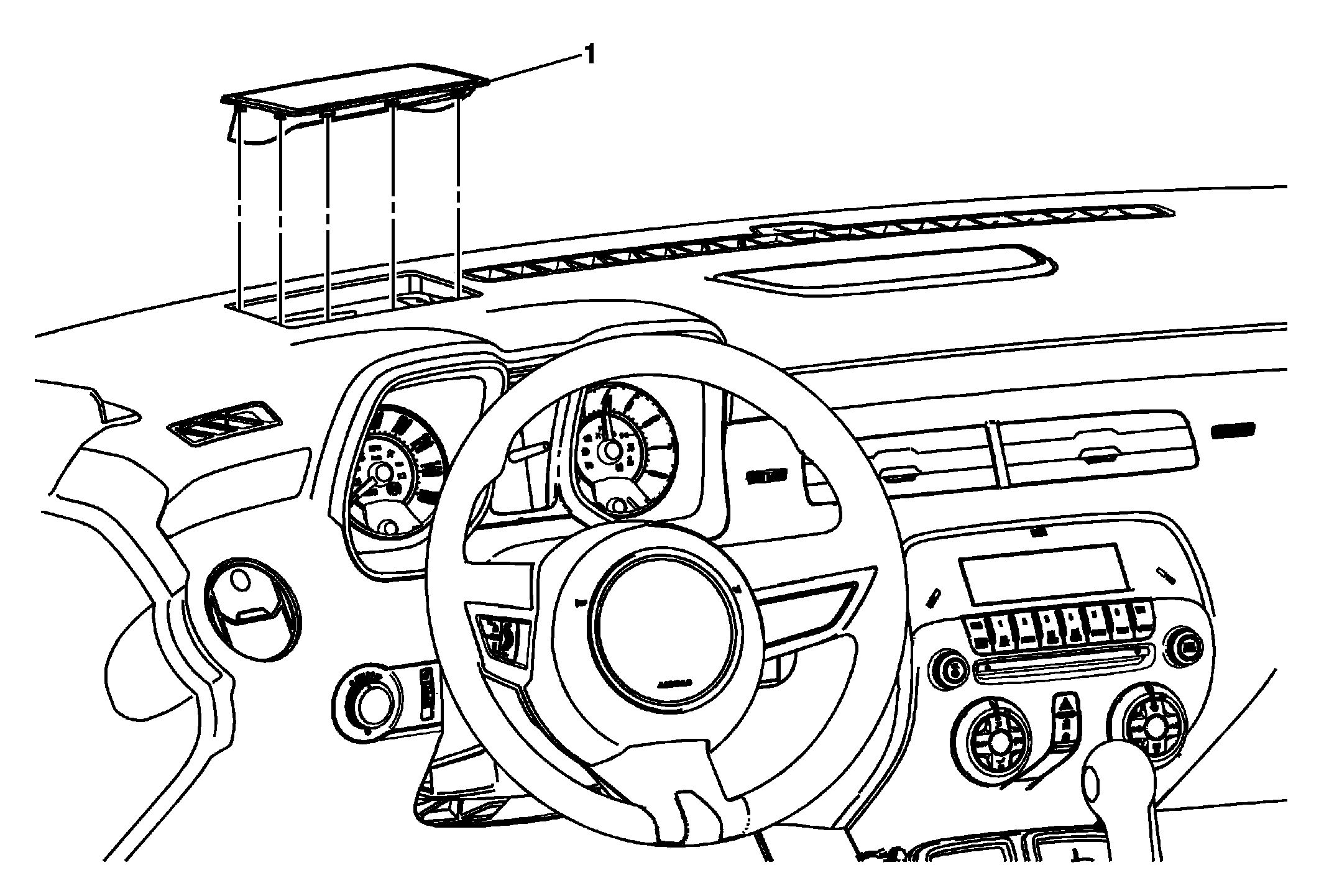

| Callout |
Component Name |
| 1 |
Instrument Panel Upper Trim Pad Bezel
Procedure
Use a flat bladed plastic trim tool in order to release the bezel from the instrument panel assembly. |
