Front End Sheet Metal Cross Brace Replacement

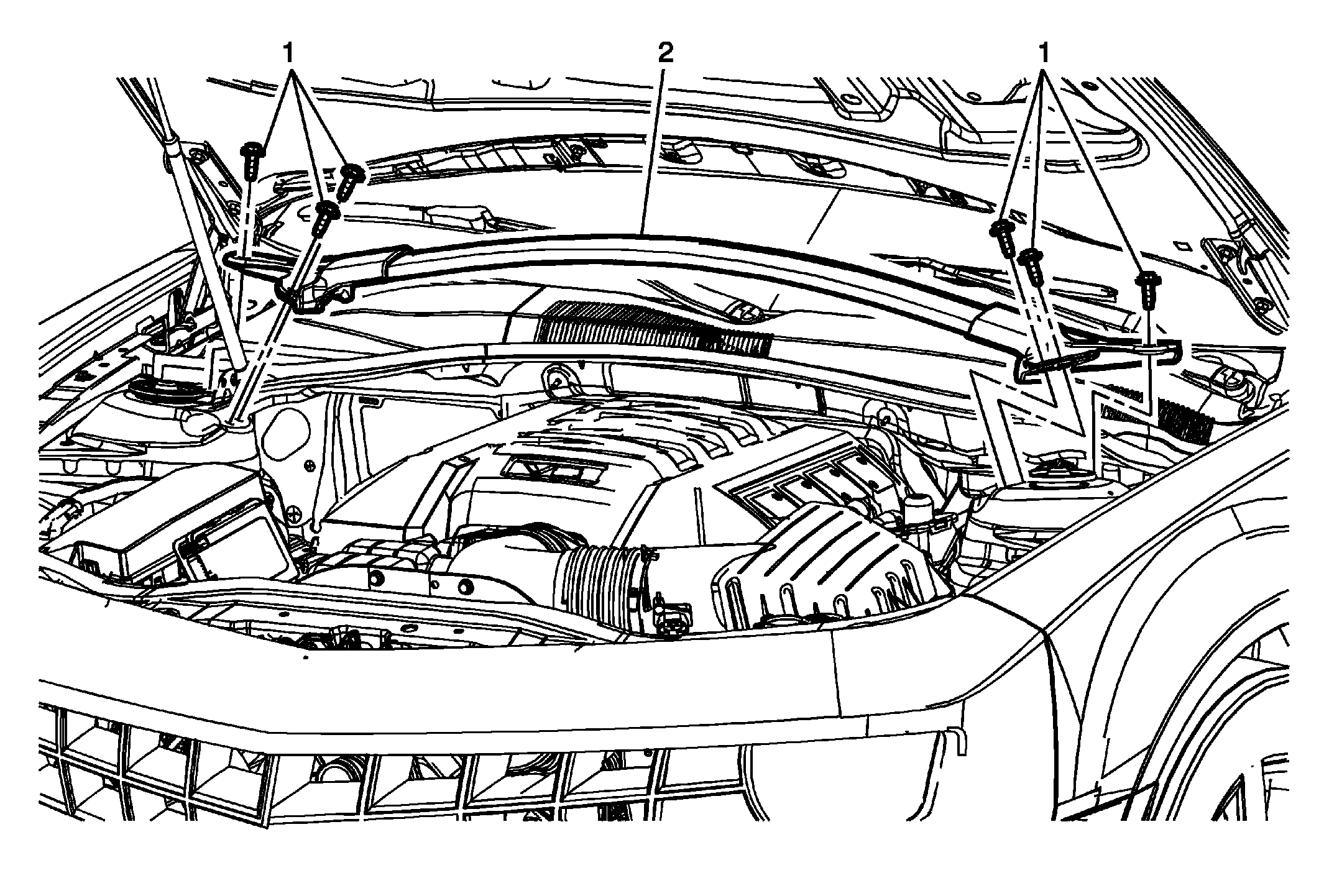

Fig 1: Front End Sheet Metal Cross Brace & Bolts
GM2554504Courtesy of GENERAL MOTORS COMPANY
Front End Sheet Metal Cross Brace Replacement

Callout Component Name
1 Front End Sheet Metal Cross Brace Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Front End Sheet Metal Cross Brace
