Rear License Plate Lamp Replacement
Rear License Plate Lamp Replacement

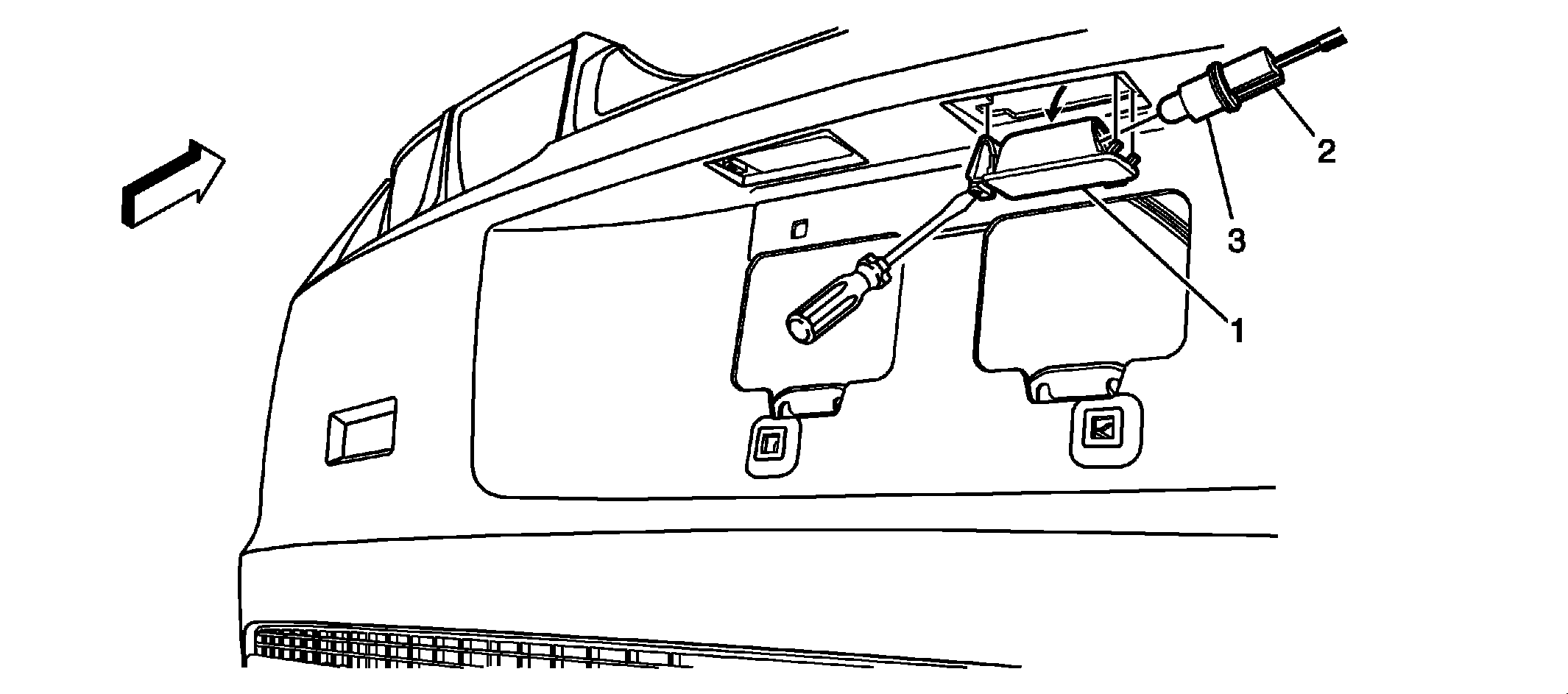

| Callout | Component Name |
|---|---|
| Preliminary Procedure Using a small flat-bladed tool, depress the inner license plate lamp tab and rotate downward in order to remove the lamp from the rear bumper fascia. |
|
| 1 | License Plate Lamp |
| 2 | License Plate Lamp Electrical Socket Connector |
| 3 | License Plate Lamp Bulb TIP: Replace the bulb as needed. |
