Parking and Turn Signal Lamp Bulb Replacement

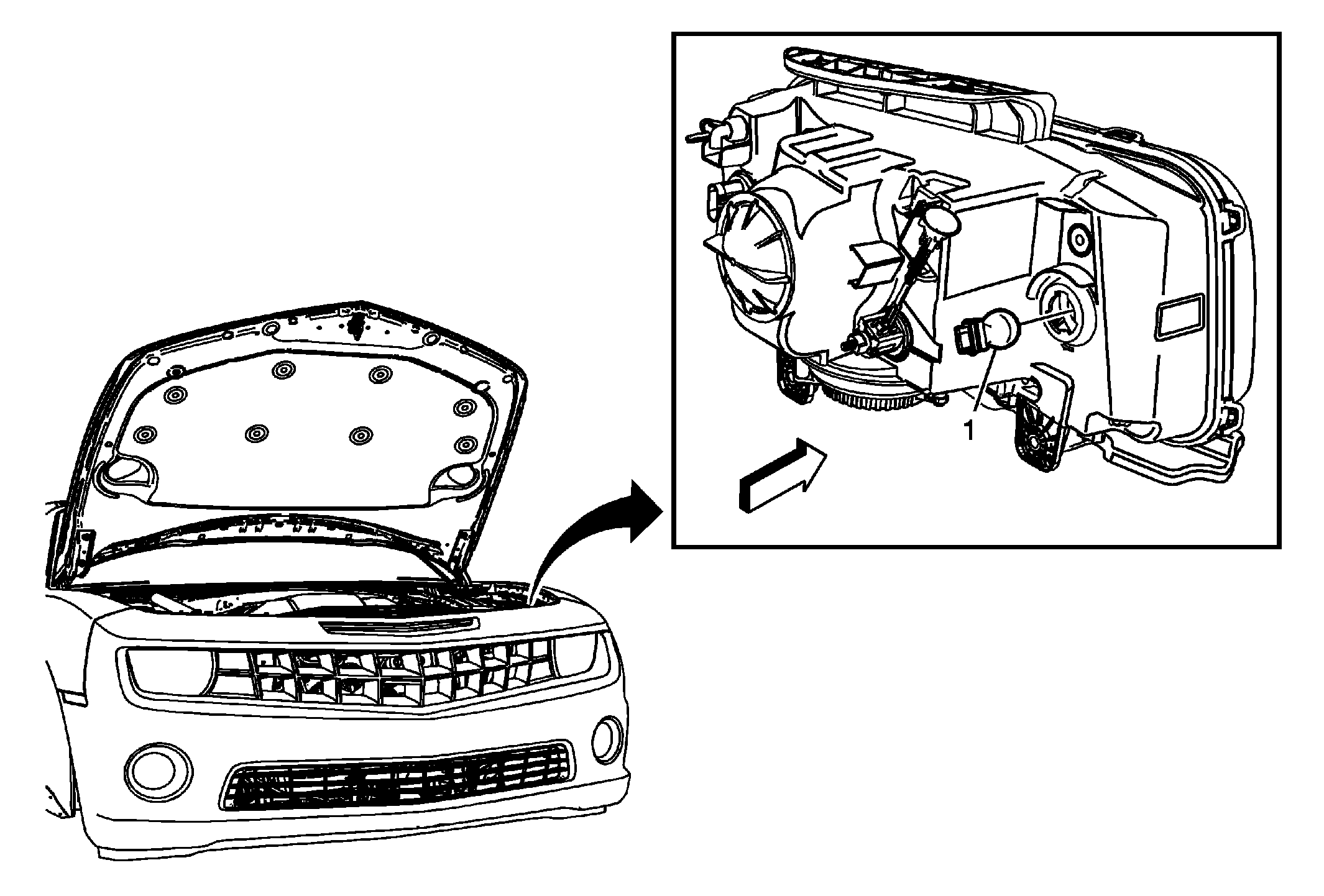

Fig 1: Parking & Turn Signal Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner assembly if removing the driver side park and turn signal lamp bulb. Refer to Air Cleaner Assembly Replacement (L99 or LS3) , Air Cleaner Assembly Replacement (LSA) .
1	Park and Turn Signal Lamp Bulb Procedure Rotate the bulb socket counter-clockwise and remove from the headlamp assembly. Pull the bulb straight from the bulb socket.

Callout

Component Name

Preliminary Procedure
Remove the air cleaner assembly if removing the driver side park and turn signal lamp bulb. Refer to Air Cleaner Assembly Replacement (L99 or LS3) , Air Cleaner Assembly Replacement (LSA) .

Park and Turn Signal Lamp Bulb

Procedure
