High Mount Stop Lamp Replacement (Convertible)
High Mount Stop Lamp Replacement (Convertible)

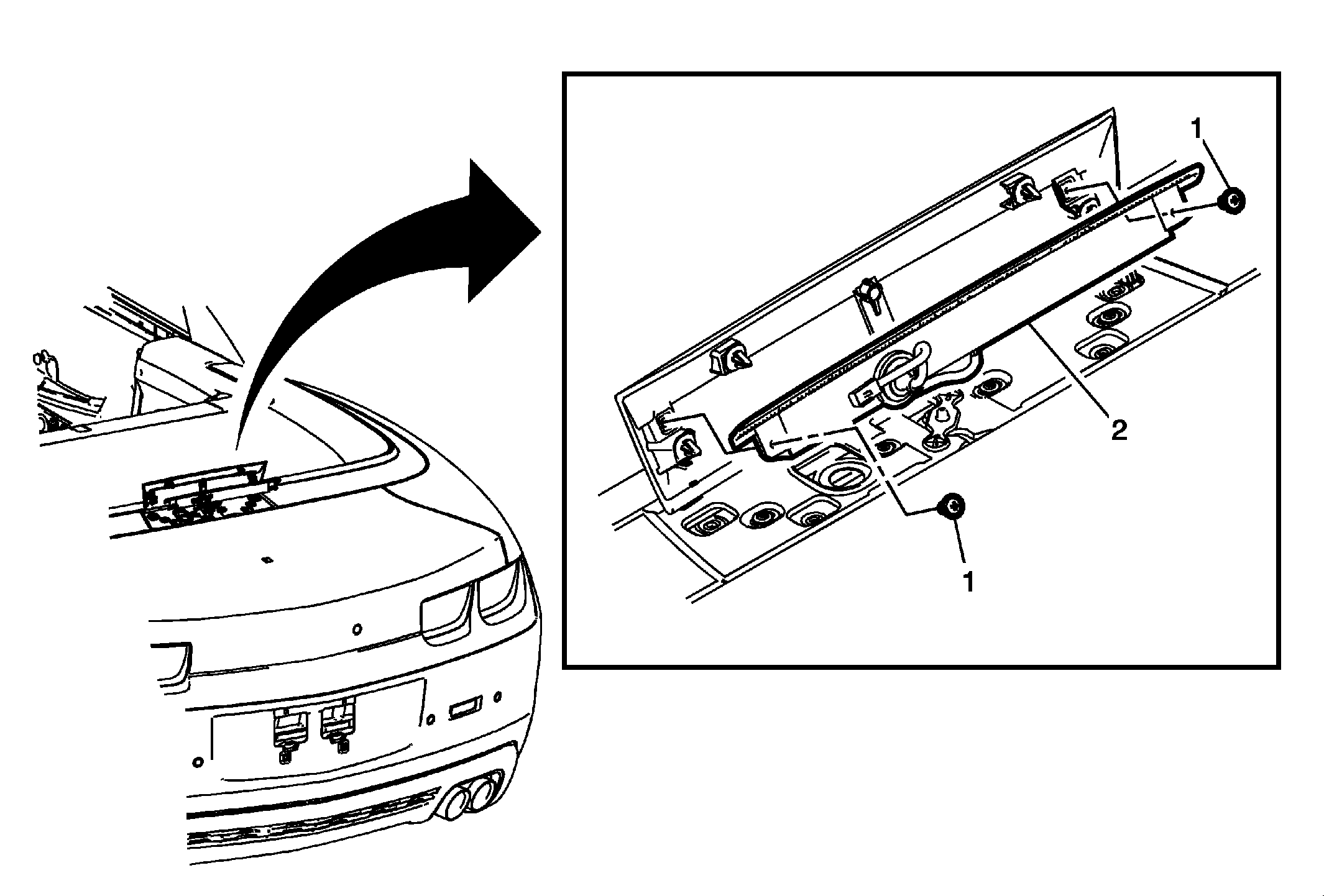

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window upper reveal molding. Refer to Rear Window Upper Reveal Molding Replacement . |
|
| 1 | High Mount Stop Lamp Screw (Qty: 2) Caution Refer to Fastener Caution . Procedure When installing CHMSL replace all seals on the push in retainers to prevent water entry. |
| 2 | High Mount Stop Lamp Assembly Procedure Water test vehicle to check for any leaks. |
