Headlamp Leveling Front Suspension Height Sensor Replacement (Coupe)

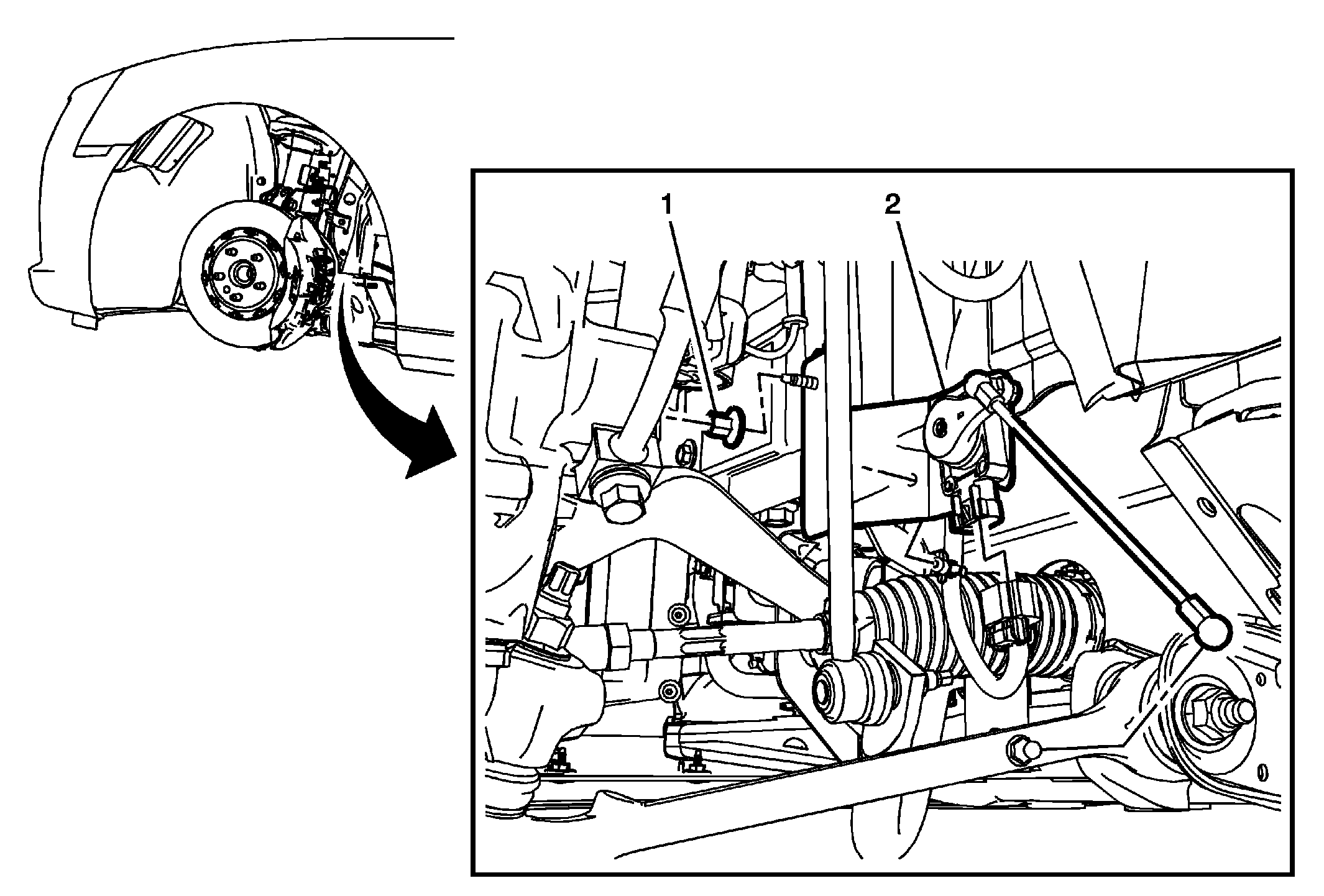

Fig 1: Headlamp Leveling Front Suspension Height Sensor & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the headlamp leveling front suspension height sensor electrical connector. Disconnect the headlamp leveling front suspension height sensor socket from the ball stud.
1	Headlamp Leveling Front Suspension Height Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Headlamp Leveling Front Suspension Height Sensor Procedure Program and setup headlamp leveling front suspension height sensor control module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the headlamp leveling front suspension height sensor electrical connector.
Disconnect the headlamp leveling front suspension height sensor socket from the ball stud.

Headlamp Leveling Front Suspension Height Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Headlamp Leveling Front Suspension Height Sensor
Procedure
Program and setup headlamp leveling front suspension height sensor control module. Refer to Control Module References .
