Brake Pedal Position Sensor Replacement

NOTE: Brake system does not use a brake switch, stoplight switch or brakelight switch. System uses a Brake Pedal Position Sensor to control these functions.

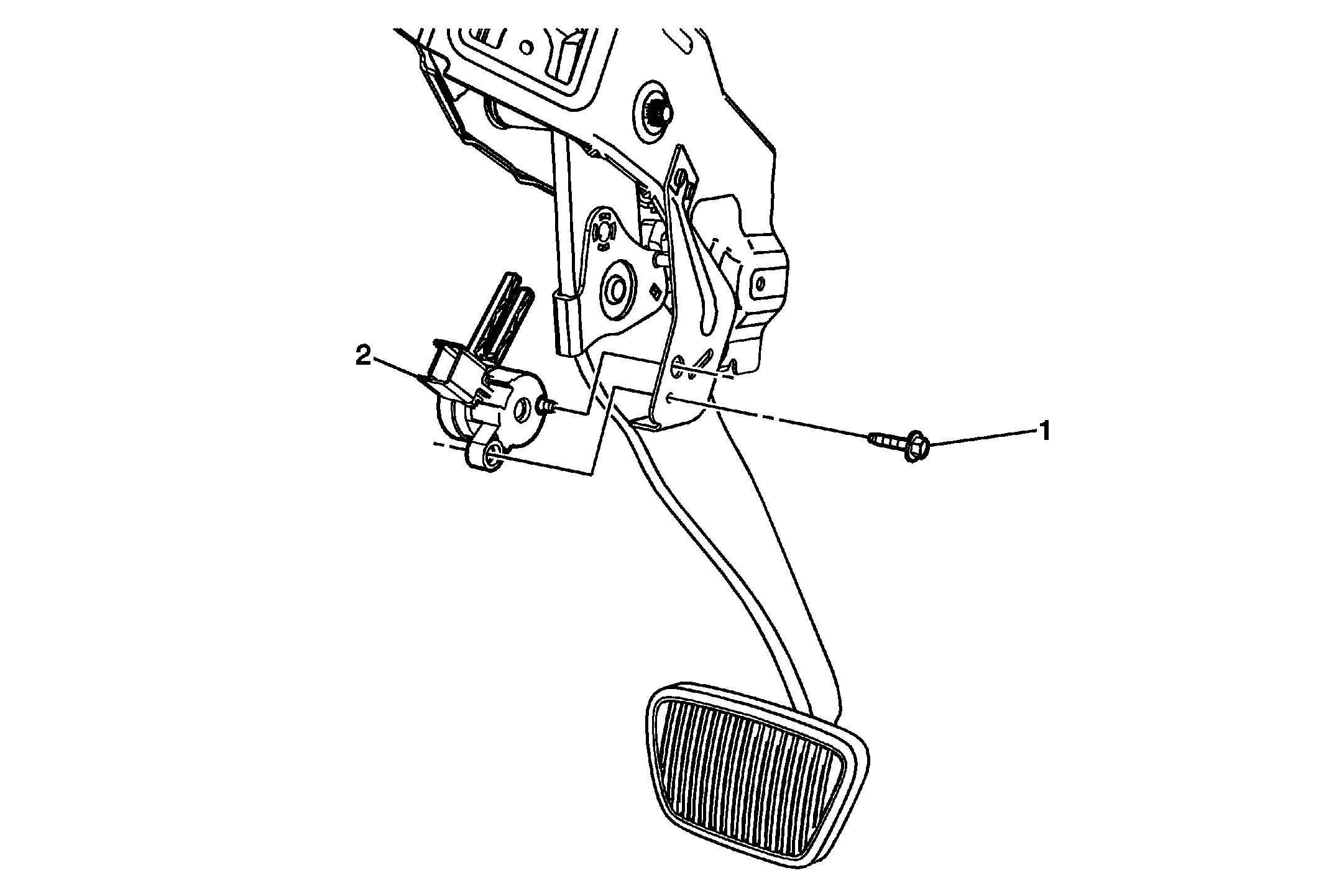

Fig 1: Brake Pedal Position Sensor And Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Brake Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the sensor bolt. Tighten 9 N.m (80 lb in)
2	Brake Pedal Position Sensor Procedure Disconnect the electrical connector. Pull the sensor away from the bracket. Recalibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .

Callout

Component Name

Brake Pedal Position Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Procedure
Remove the sensor bolt.
Tighten
9 N.m (80 lb in)

Brake Pedal Position Sensor

Procedure

Disconnect the electrical connector.
Pull the sensor away from the bracket.
Recalibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
