Backup Lamp Replacement

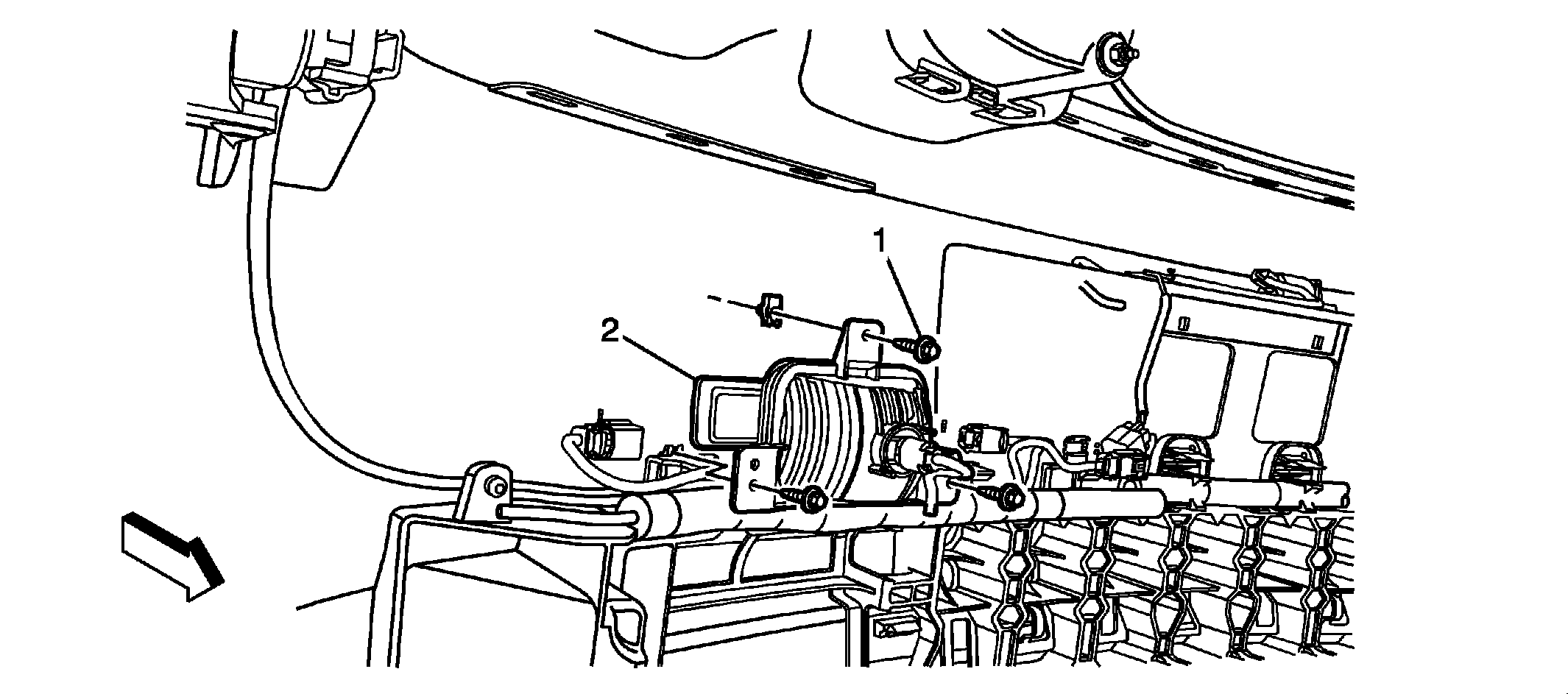

Fig 1: Backup Lamp & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . Disconnect the electrical connector bulb socket from the back up lamp.
1	Back Up Lamp Screw (Qty: 3) CAUTION: Refer to Fastener Caution . TIP: Flex the top of the rear bumper energy absorber in order to access the lower back up lamp screws. Tighten 2.5 N.m (22 lb in)
2	Back Up Lamp

Callout

Component Name

Preliminary Procedures

Back Up Lamp Screw (Qty: 3)

CAUTION:

TIP: Flex the top of the rear bumper energy absorber in order to access the lower back up lamp screws.
Tighten
2.5 N.m (22 lb in)

Back Up Lamp
