Radio Front Speaker Grille Replacement
Courtesy of GENERAL MOTORS COMPANY Radio Front Speaker Grille Replacement

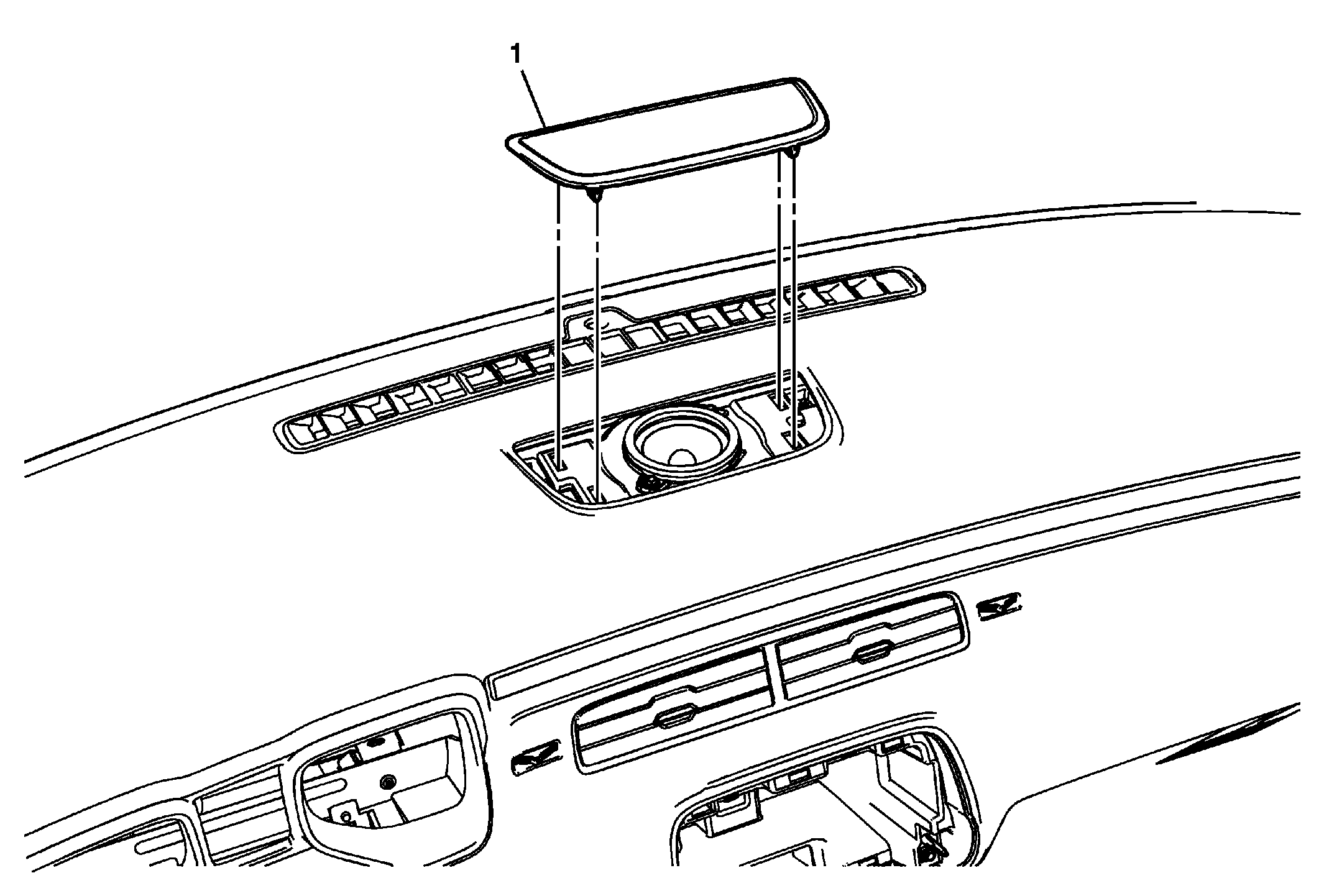

| Callout |
Component Name |
| 1 |
Radio Front Speaker Grille
Procedure
Using a flat bladed tool, gently unsnap speaker grille from the instrument panel trim pad. The grille is attached with four integral clips. |
