Radio Front Side Door Upper Speaker Grille Replacement

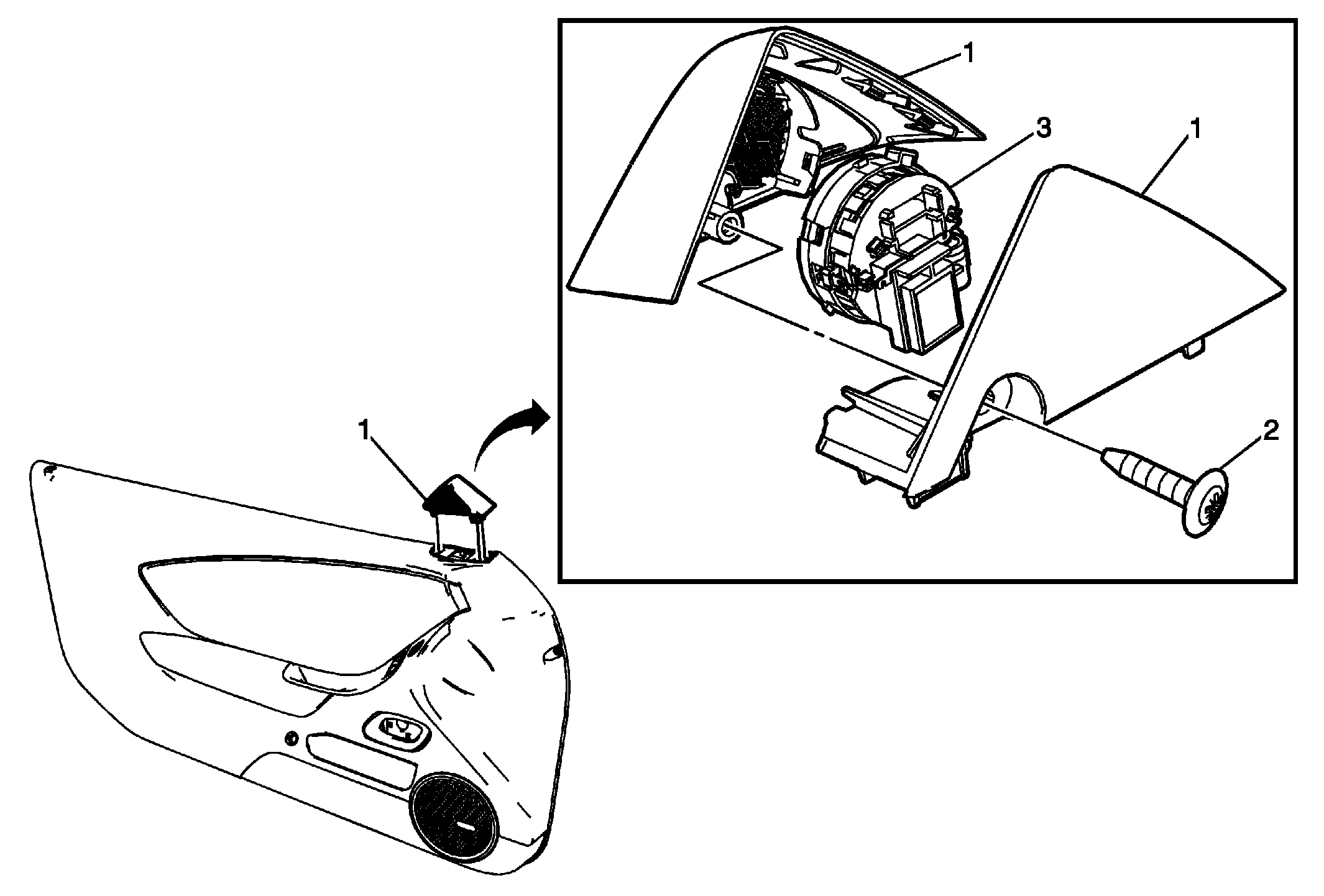

Fig 1: Radio Front Side Door Upper Speaker, Grille And Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radio Front Side Door Upper Speaker Grille Procedure Using plastic trim tool, release 3 retainers, and pull speaker grille assembly straight up
2	Radio Front Side Door Upper Speaker Grille Bolt CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Radio Front Side Door Upper Speaker Procedure Disconnect electrical connector. Separate the speaker grille halves. Unclip speaker from grille.

Callout

Component Name

Radio Front Side Door Upper Speaker Grille
Procedure
Using plastic trim tool, release 3 retainers, and pull speaker grille assembly straight up

Radio Front Side Door Upper Speaker Grille Bolt

CAUTION:

Tighten
2 N.m (18 lb in)

Radio Front Side Door Upper Speaker

Procedure
