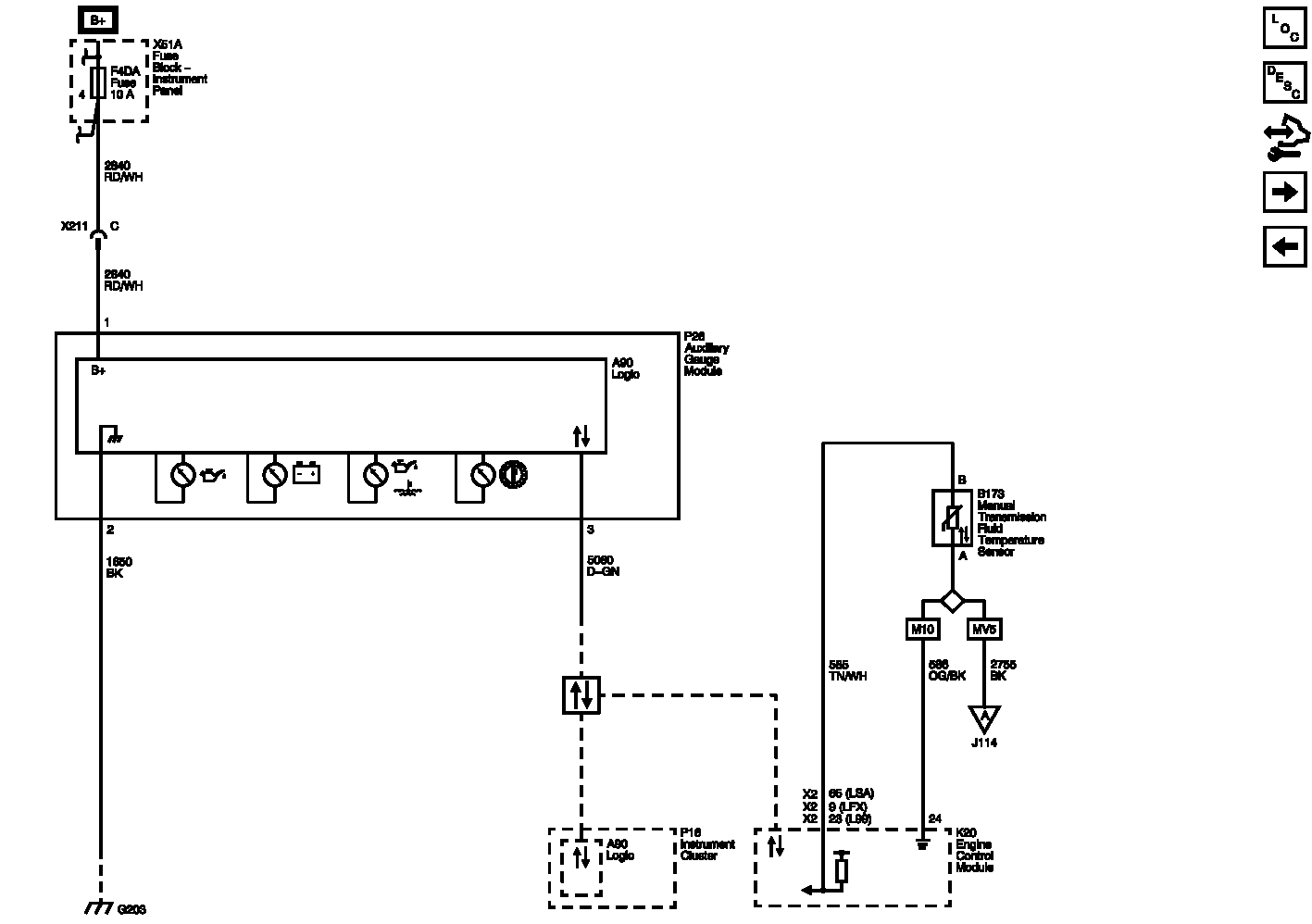

Home >> Chevrolet >> 2012 >> Camaro LS, Standard Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Wiring Schematics >> Instrument Cluster Wiring Schematics >> Auxiliary Gages (UMQ)
