Head-Up Display Dimmer Switch Replacement

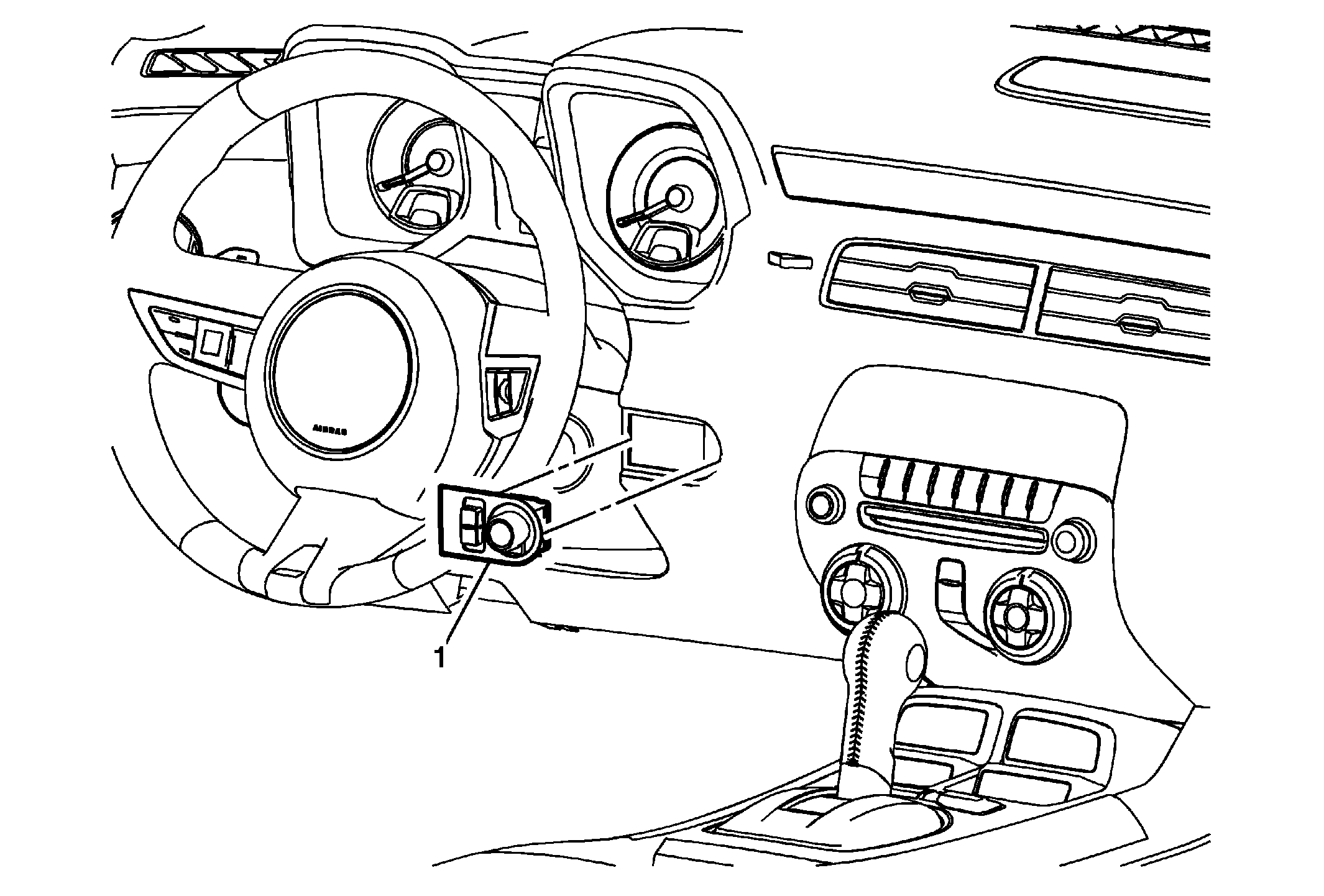

Fig 1: Instrument Cluster Head-Up Display Dimmer Switch
GM2390528Courtesy of GENERAL MOTORS COMPANY
Head-Up Display Dimmer Switch Replacement

Callout Component Name
1 Instrument Cluster Heads Up Display Dimmer Switch Assembly

Procedures

  1. Use a flat bladed plastic trim tool to aid in the removal of the switch from the instrument panel assembly.
  2. Disconnect the electrical connections.
