F2UA, F25UA, F26UA, F31UA, F32UA, F33UA, and F34UA Fuses

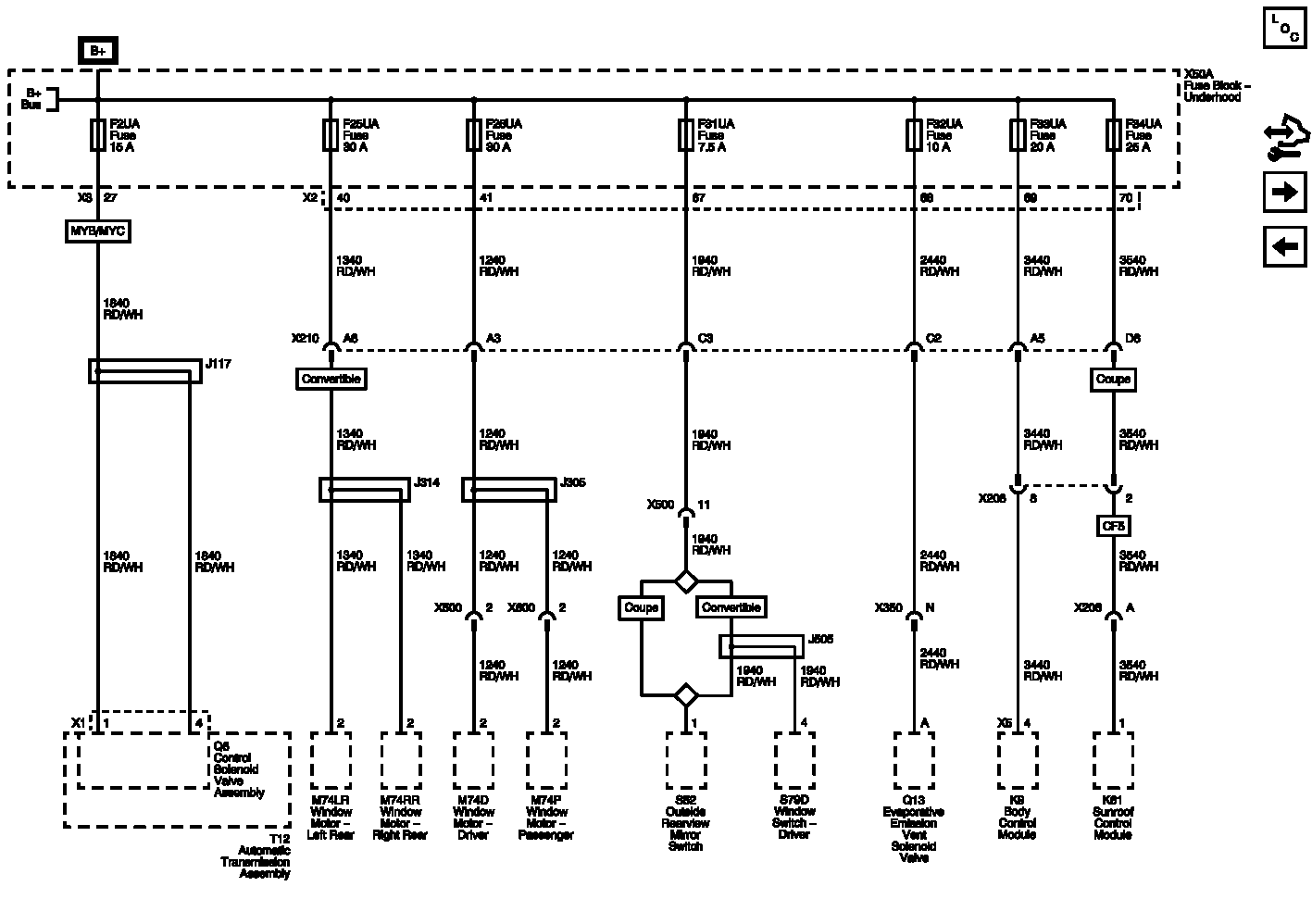

Fig 1: F2UA, F25UA, F26UA, F31UA, F32UA, F33UA, and F34UA Fuses Wiring Schematic

GM2618746

Courtesy of GENERAL MOTORS COMPANY
