F27UA, F38UA, F46UA, F47UA, F55UA, F56UA, and F61UA Fuses

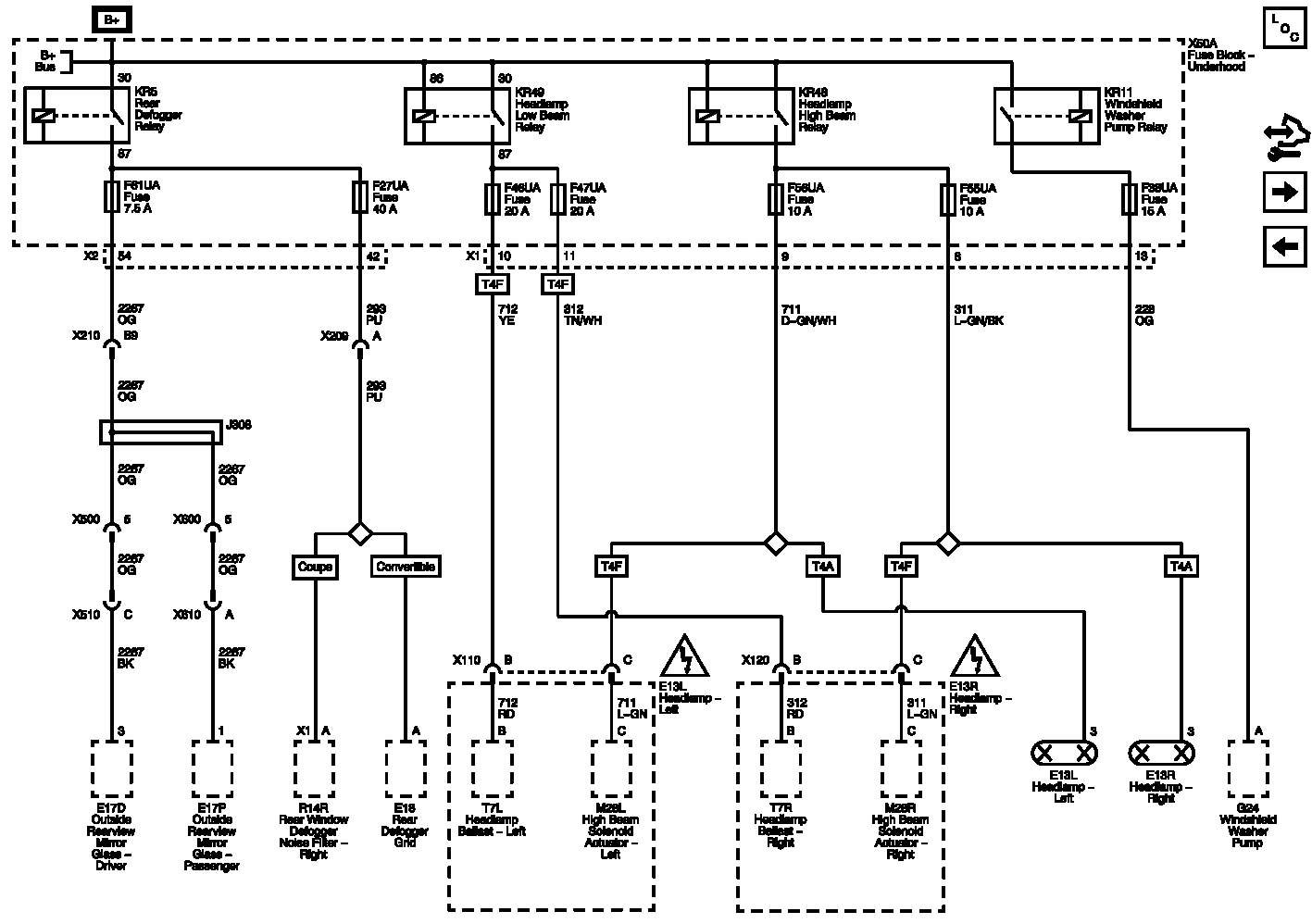

Fig 1: F27UA, F38UA, F46UA, F47UA, F55UA, F56UA, and F61UA Fuses Wiring Schematic

GM2618909

Courtesy of GENERAL MOTORS COMPANY
