F14UA, F15UA, F16UA, F17UA, F18UA, F19UA, and F20UA Fuses

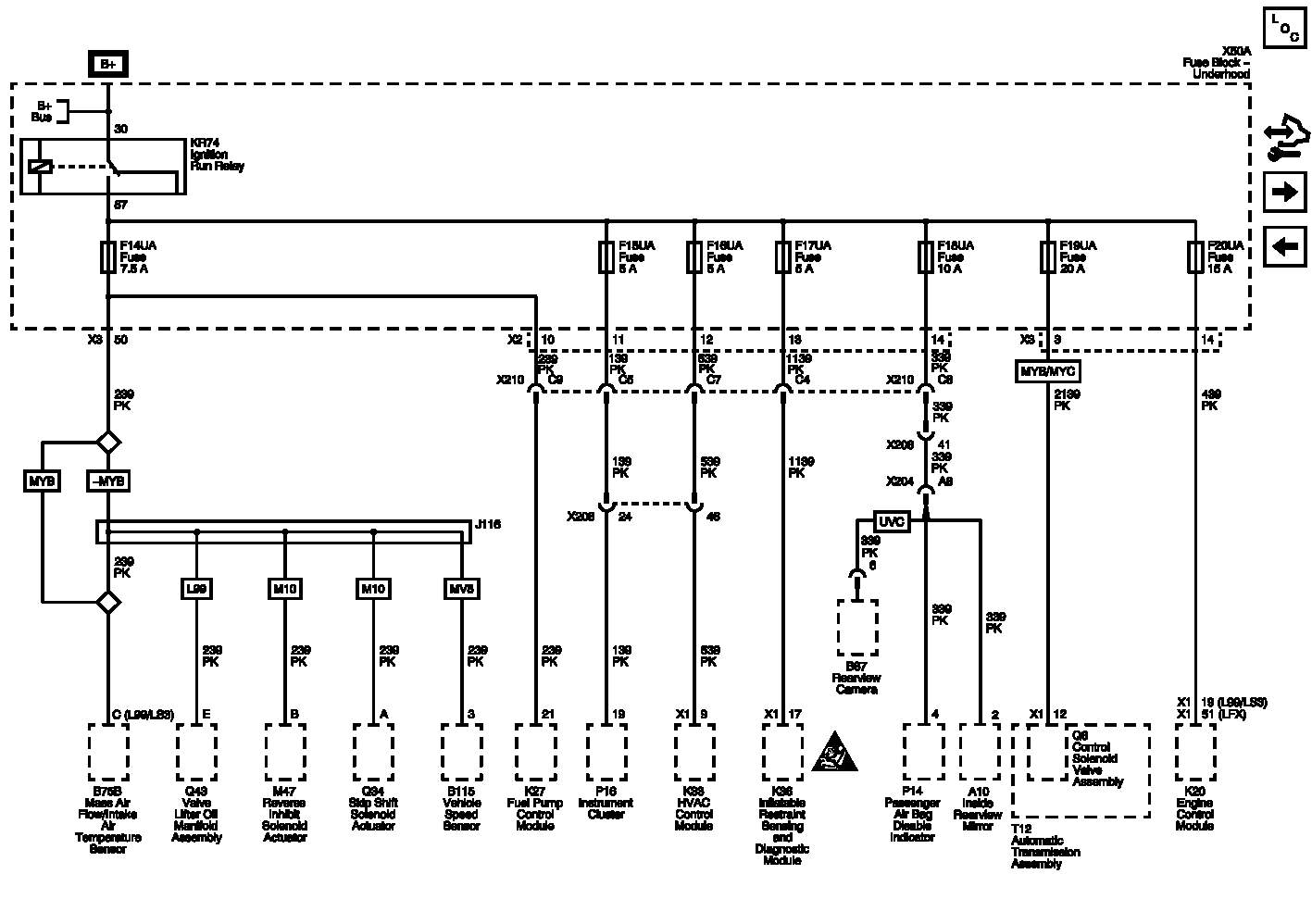

Fig 1: F14UA, F15UA, F16UA, F17UA, F18UA, F19UA, and F20UA Fuses Wiring Schematic

GM2618885

Courtesy of GENERAL MOTORS COMPANY
