Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams
>>
Routing Diagrams
>>
Harness Routing Views
>>
Transmission Harness Routing Diagram - Right Rear (MYC)
Transmission Harness Routing Diagram - Right Rear (MYC)

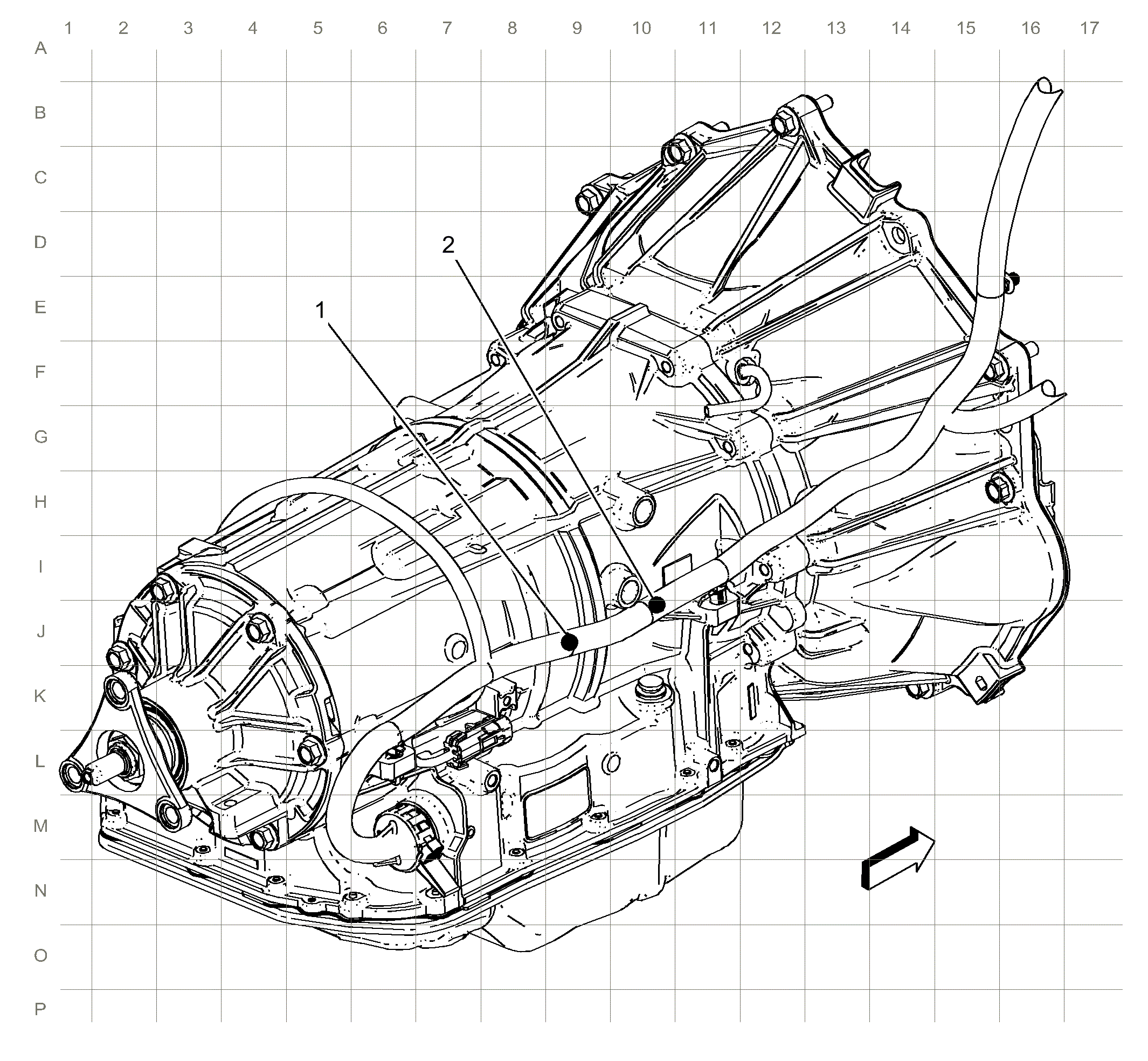

Fig 1: Transmission Harness Routing Diagram - Right Rear (MYC)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
J117
2
J118
