Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams
>>
Routing Diagrams
>>
Harness Routing Views
>>
Instrument Panel Harness Routing Diagram - Top Right Overhead
Instrument Panel Harness Routing Diagram - Top Right Overhead

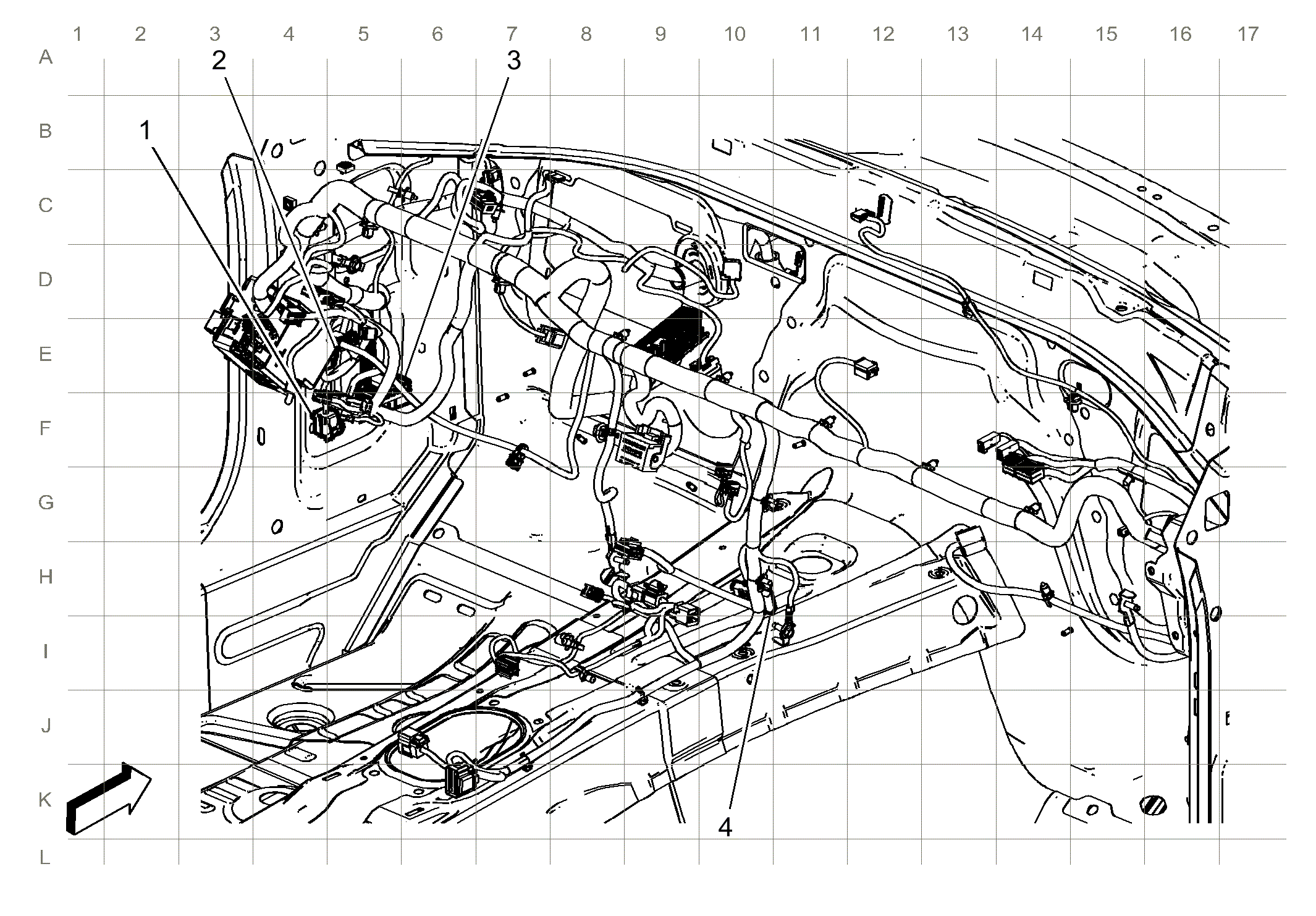

Fig 1: Instrument Panel Harness Routing Diagram - Top Right Overhead
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
X253
2
X206 (CF5)
3
X207
4
JX200
Courtesy of GENERAL MOTORS COMPANY
