Instrument Panel Harness Routing Diagram - Right Back Side of the Instrument Panel

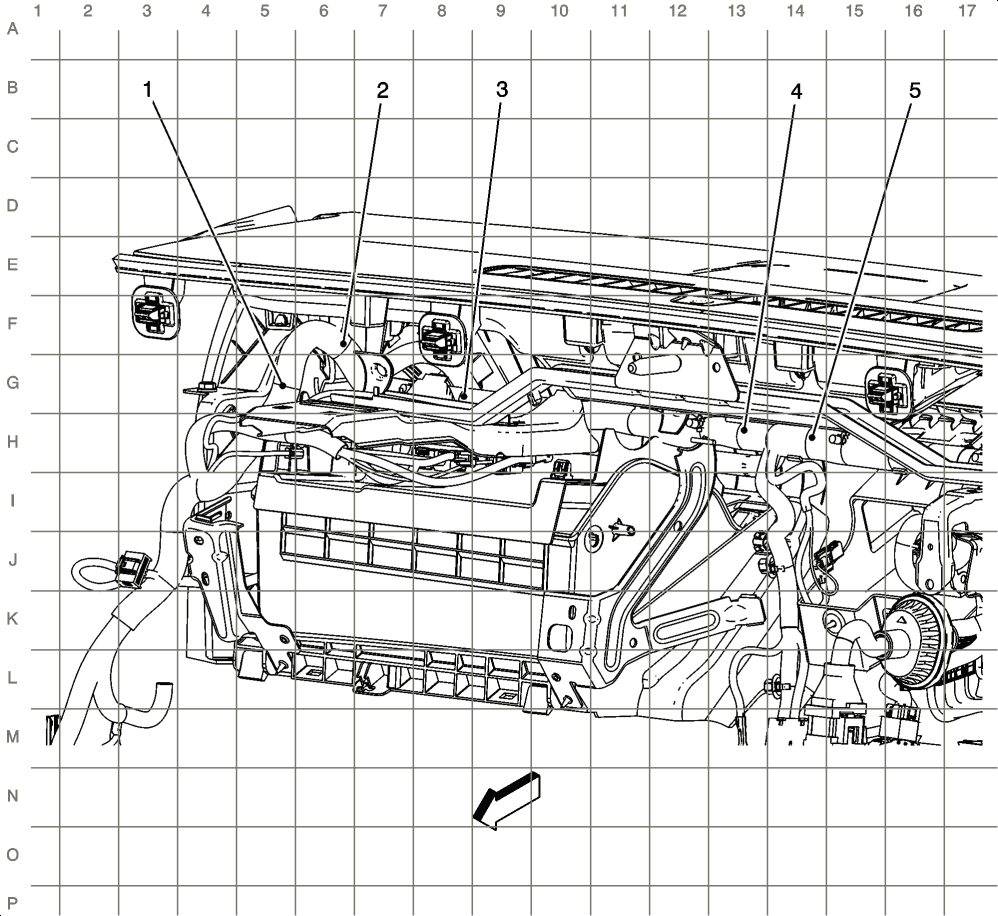

Fig 1: Instrument Panel Harness Routing Diagram - Right Back Side of the Instrument Panel
GM2535663Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 J252
2 J251
3 J219
4 J220
5 J214
