Instrument Panel Harness Routing Diagram - Left Back Side of the Instrument Panel

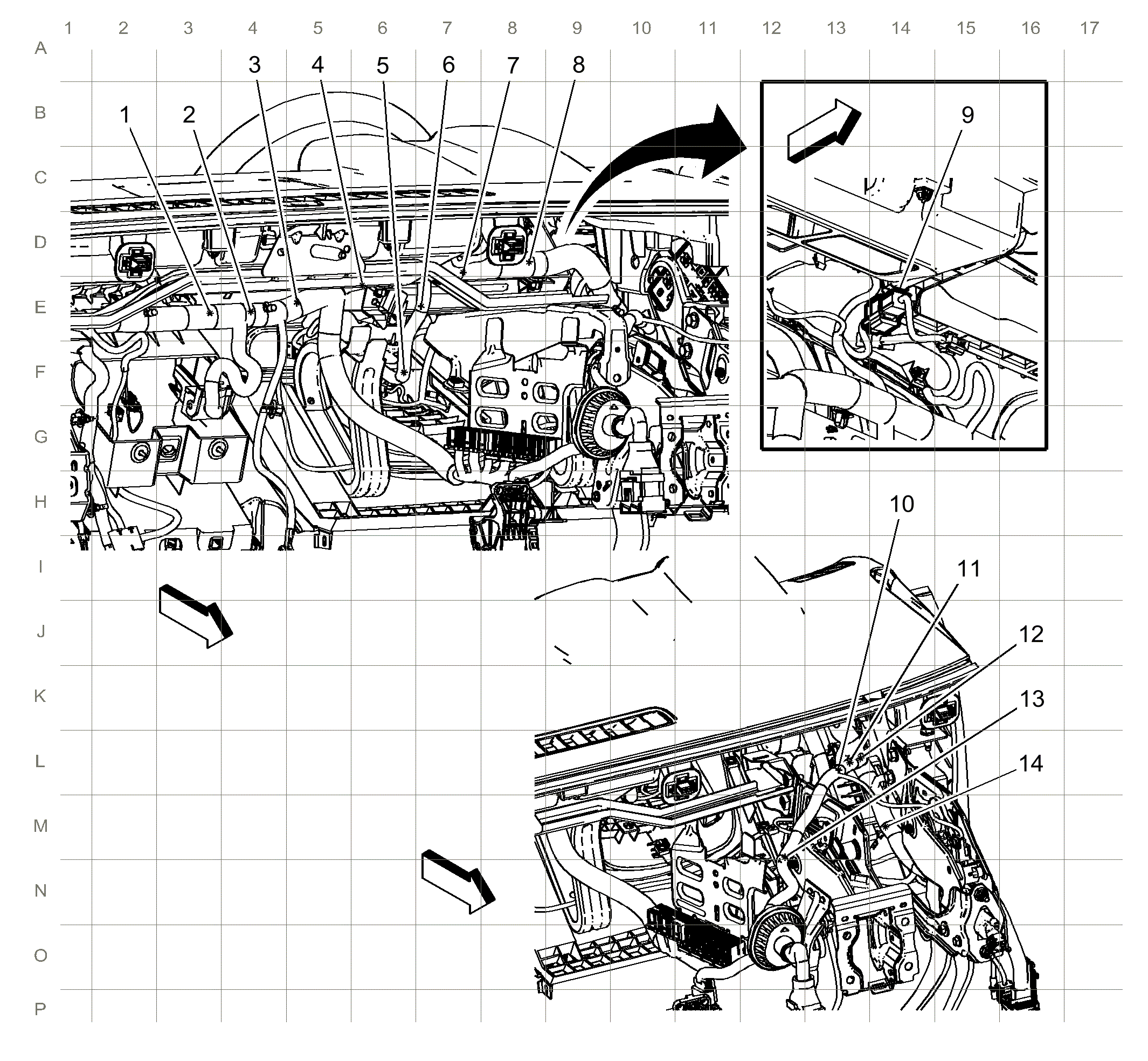

Fig 1: Instrument Panel Harness Routing Diagram
GM2535656Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 J218
2 J217
3 J208
4 J216
5 J206
6 J207
7 J213
8 J205
9 X225
10 J204
11 J203
12 J202
13 J215
14 J201
