Engine Harness Routing Diagram - Right Side (L99 or LS3)

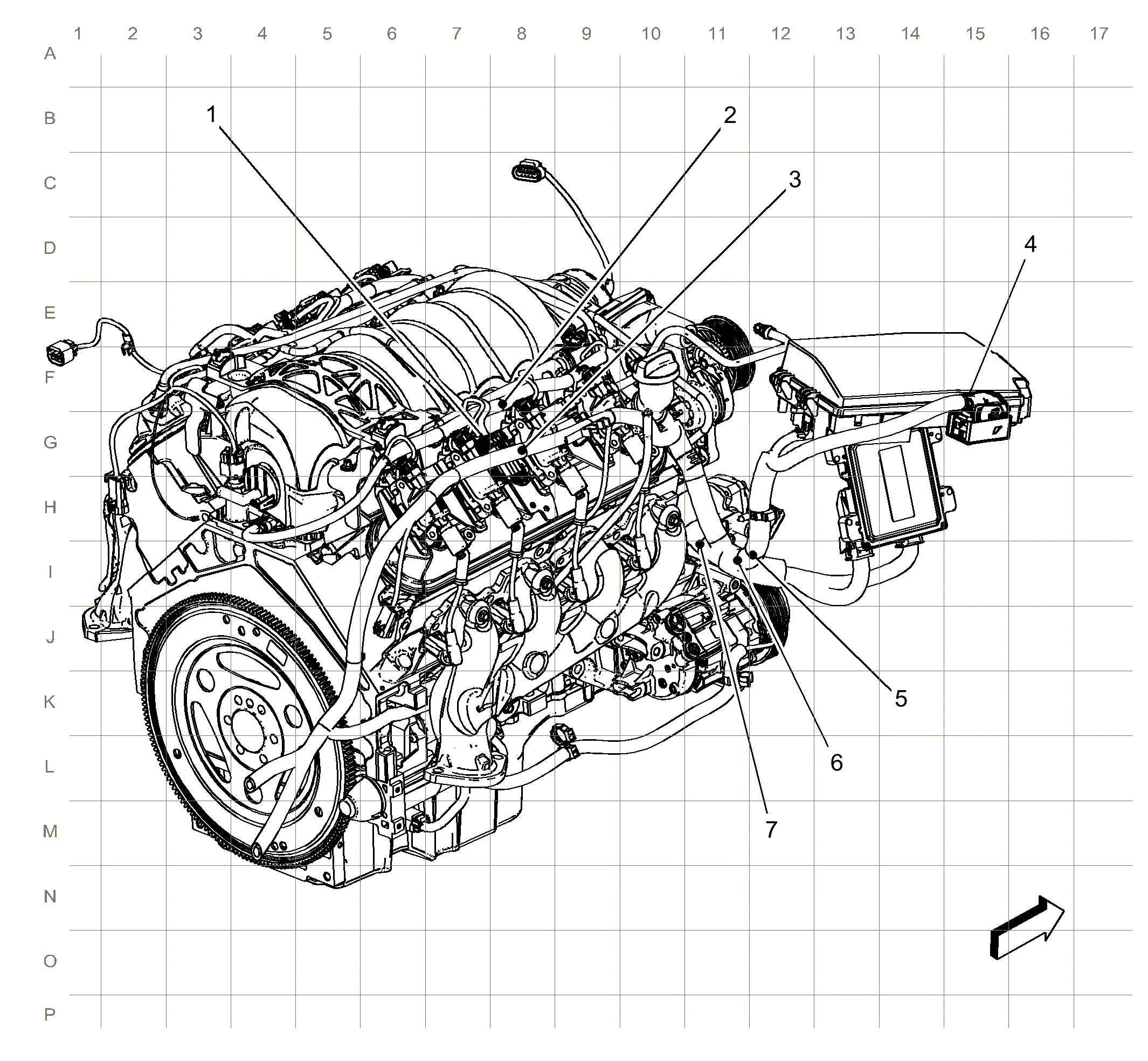

Fig 1: Engine Harness Routing Diagram - Right Side (L99 or LS3)
GM2291116Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 X112
2 J123
3 J129
4 X102
5 J111 (MYC)
6 J116
7 J126
