Engine Harness Routing Diagram - Left Rear (L99 or LS3)
Engine Harness Routing Diagram - Left Rear (L99 or LS3)

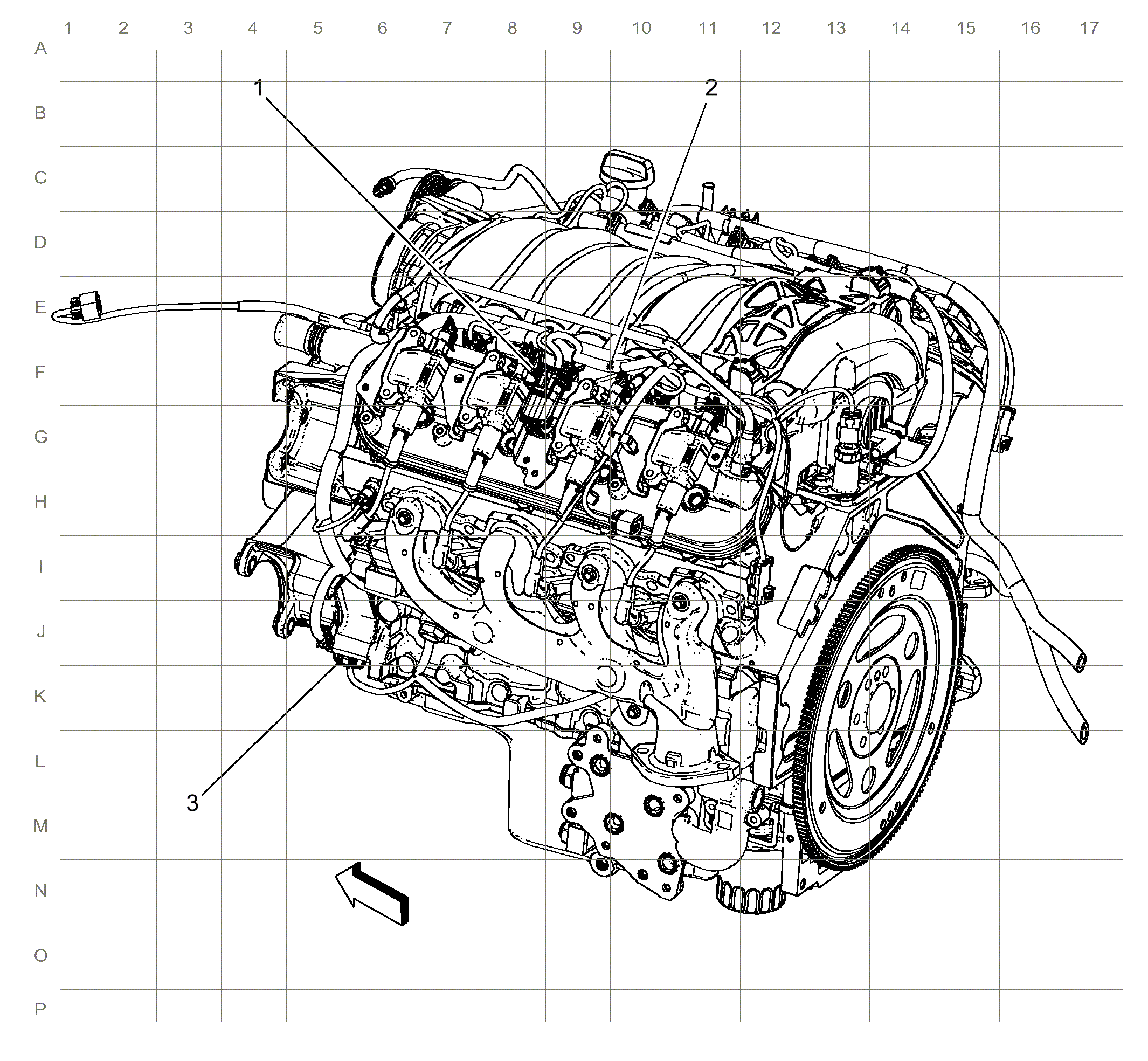

Fig 1: Engine Harness Routing Diagram - Left Rear (L99 or LS3)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
X113
2
J113
3
X109
Courtesy of GENERAL MOTORS COMPANY
